SLP103M063H9P3 - Cornell Dubilier

Description: Cornell-Dubilier 10000μF 63 V dc Aluminium Capacitor H9, SLP Series 1000 (Shelf) h, 3000 (Endurance) h 35 x 50mm

Download SLP103M063H9P3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
SLP103M063H9P3 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

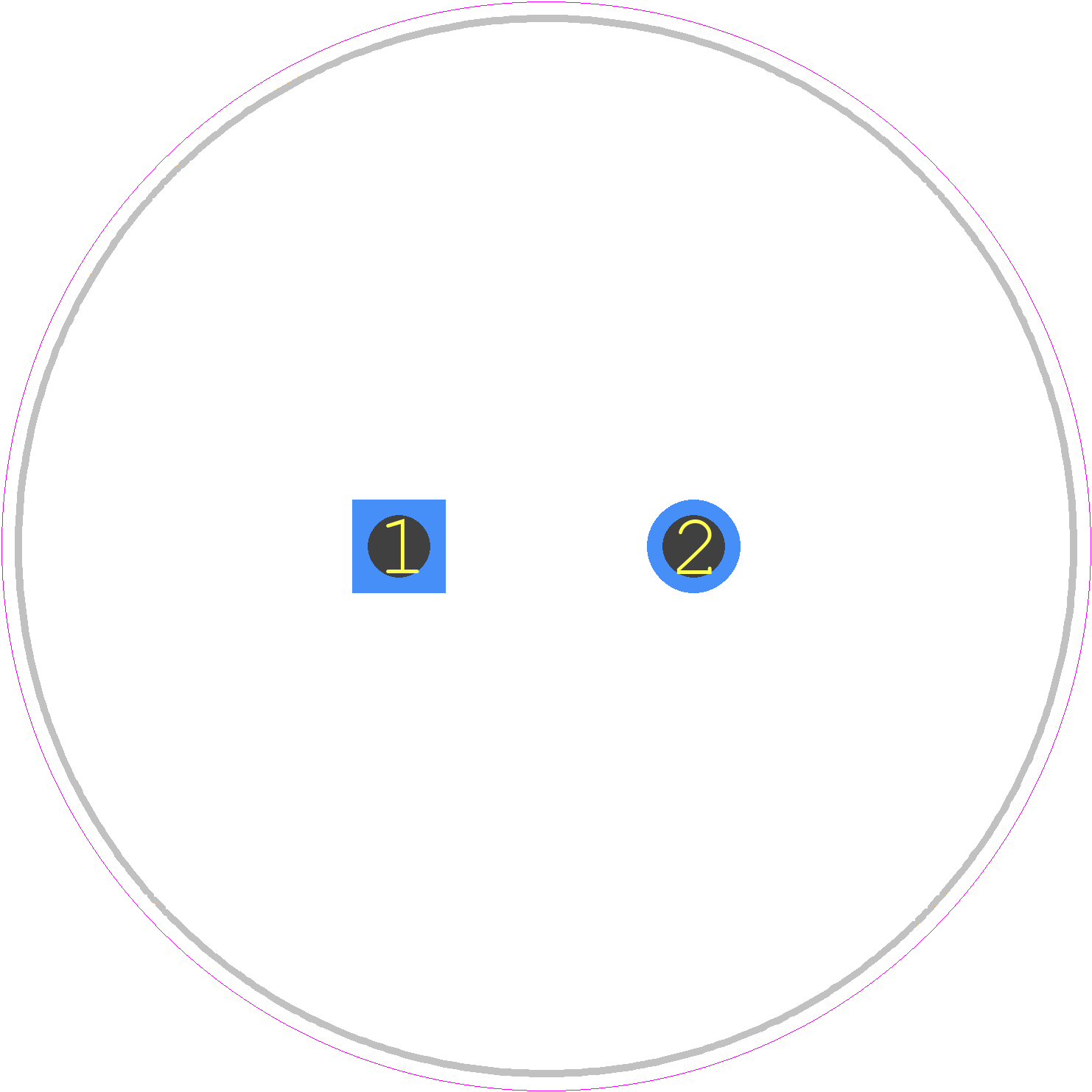

SLP103M063H9P3 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - SLP (35x50)
click to zoom
3D Models
SLP103M063H9P3 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - SLP (35x50)
click to zoom

SLP103M063H9P3 Details

  • Manufacturer Part Number:

    SLP103M063H9P3

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    6

  • Capacitance:

    10000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    40 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    2.3812 mA

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Snap-in

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    5110 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

SLP103M063H9P3 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the SLP103M063H9P3 is between 250°C to 260°C for a maximum of 3 seconds.
  • Yes, the SLP103M063H9P3 capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, and cadmium.
  • The ESR of the SLP103M063H9P3 is typically around 10-20 milliohms, depending on the frequency and operating conditions.
  • Yes, the SLP103M063H9P3 is designed to withstand high-vibration environments, making it suitable for use in applications such as aerospace, automotive, and industrial control systems.
  • The shelf life of the SLP103M063H9P3 capacitor is typically 2 years from the date of manufacture, but it can be extended to 5 years or more if stored properly in a cool, dry place.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SLP103M063H9P3 Overview

Use the download button to access the SLP103M063H9P3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SLP10, or try a keyword search, such as Ceramic Capacitors
