IT CAN ALSO OPERATE WITH 2.7V TO 18V SINGLE SUPPLY
Bandwidth-Nom:
100000 kHz
Consumer IC Type:
VIDEO AMPLIFIER
Gain:
100 dB
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
2
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
1.35 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
SN10502DGKR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
To ensure reliable operation, follow the recommended operating conditions, including voltage and current ratings. Also, consider the thermal management of the device, as excessive heat can affect performance and reliability. Use thermal pads or heat sinks if necessary, and ensure good airflow around the device.
Operating the SN10502DGKR outside the recommended input voltage range may affect its performance, power consumption, and reliability. Using a lower input voltage may reduce the output voltage and increase the dropout voltage, while using a higher input voltage may increase power consumption and heat generation. Always follow the recommended input voltage range for optimal performance and reliability.
The SN10502DGKR has a typical output voltage tolerance of ±2%. To ensure accurate output voltage, consider using an external voltage reference or a more precise voltage regulator. Additionally, consider the output voltage variation over temperature, load, and input voltage changes.
The SN10502DGKR is designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). However, it's essential to follow good PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using shielding or filtering components if necessary. Additionally, consider the device's switching frequency and ensure it doesn't interfere with other components or systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN10502DGKR Overview

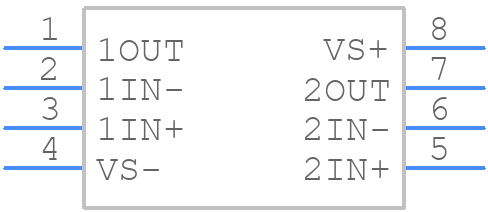

Use the download button to access the SN10502DGKR schematic symbol, PCB footprint, and 3D model.
