IT CAN ALSO OPERATE WITH 2.7V TO 18V SINGLE SUPPLY
Bandwidth-Nom:
100000 kHz
Consumer IC Type:
VIDEO AMPLIFIER
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
2
Number of Channels:
3
Number of Functions:
3
Number of Terminals:
14
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
HTSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
8 V
Supply Voltage-Min (Vsup):
1.35 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
SN10503PWP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, ensure the device is placed near the power supply and decoupling capacitors.
The SN10503PWP has a thermal pad on the bottom, which should be connected to a thermal plane on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow around the device.
The SN10503PWP has an operating temperature range of -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and it's essential to ensure the device is within the recommended operating temperature range for optimal performance.
The input and output capacitors should be selected based on the specific application requirements. Generally, X7R or X5R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitor values should be chosen to ensure the device's stability and performance, typically in the range of 1uF to 10uF.
The SN10503PWP has a recommended input voltage range of 2.7V to 5.5V. Operating the device outside this range may affect its performance, stability, or even damage the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN10503PWP Overview

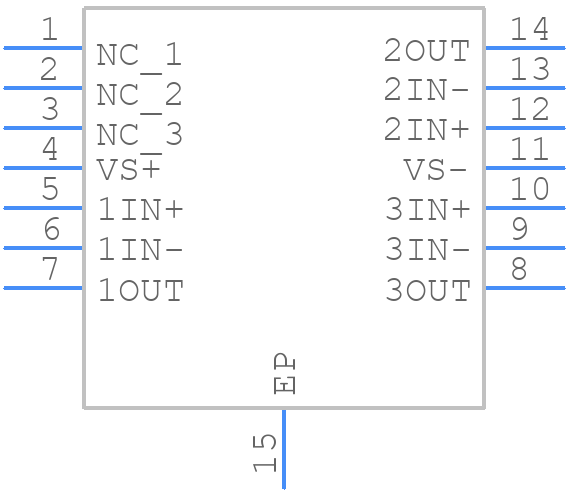

Use the download button to access the SN10503PWP schematic symbol, PCB footprint, and 3D model.
