Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
The SN55HVD233MDPSEP is rated for operation up to 125°C. To ensure reliable operation in high-temperature environments, ensure proper thermal management, such as using a heat sink or thermal pad, and follow the recommended operating conditions. Also, consider using a thermistor or temperature sensor to monitor the device temperature.
Operating the SN55HVD233MDPSEP outside the recommended voltage range (3.3V ± 10%) may affect its performance, reliability, and power consumption. Using a lower voltage may reduce the device's speed and increase its power consumption, while using a higher voltage may increase the risk of damage or reduce its lifespan.
The SN55HVD233MDPSEP has built-in ESD protection, but it's still essential to follow proper handling and assembly procedures to prevent ESD damage. Use ESD-safe materials, handle the device by the body or pins, and avoid touching the pins. For latch-up prevention, ensure that the device is powered up and down slowly, and avoid applying voltage to the inputs before the power supply.
When using the SN55HVD233MDPSEP in a high-speed design, consider the device's propagation delay, rise and fall times, and output impedance. Ensure that the signal traces are properly terminated, and use a signal integrity analysis tool to optimize the design. Additionally, consider using a clock buffer or signal repeater to maintain signal integrity.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN55HVD233MDPSEP Overview

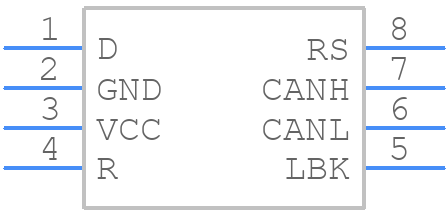

Use the download button to access the SN55HVD233MDPSEP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN55H,
or try a keyword search, such as Line Driver or Receivers
