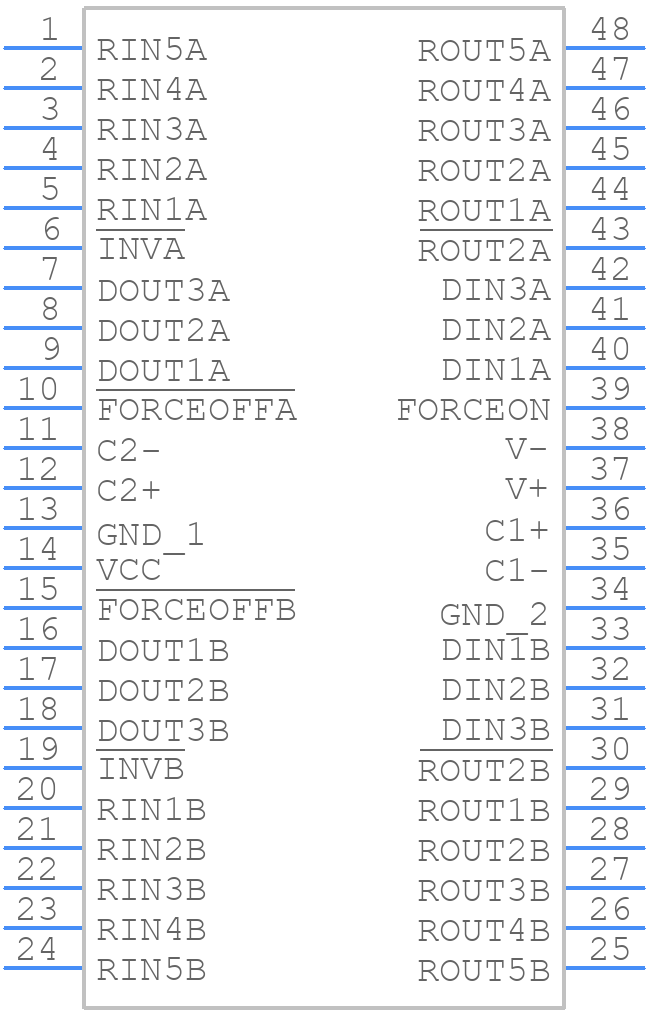

SN65C23243DL - Texas Instruments

SN65C23243DL Details

• Manufacturer Part Number:

  SN65C23243DL

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SSOP

• Package Description:

  GREEN, PLASTIC, SSOP-48

• Pin Count:

  48

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES AT 5V SUPPLY

• Differential Output:

  NO

• Driver Number of Bits:

  6

• High Level Input Current-Max:

  0.000001 A

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232-F; TIA-232-F; V.28

• JESD-30 Code:

  R-PDSO-G48

• JESD-609 Code:

  e4

• Length:

  15.875 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  6

• Number of Terminals:

  48

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  10 V

• Output Characteristics:

  3-STATE

• Output Low Current-Max:

  0.0016 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SSOP

• Package Equivalence Code:

  SSOP48,.4

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  10

• Seated Height-Max:

  2.79 mm

• Supply Current-Max:

  2 mA

• Supply Voltage-Max:

  3.6 V

• Supply Voltage-Min:

  3 V

• Supply Voltage-Nom:

  3.3 V

• Supply Voltage1-Max:

  3.6 V

• Supply Voltage1-Min:

  3 V

• Supply Voltage1-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  NICKEL PALLADIUM GOLD

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.635 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  7.49 mm
