Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SN65C23243DLR has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat. A thermal via array or a thermal pad on the PCB can be used to improve heat dissipation. Additionally, the device should be placed in a well-ventilated area to prevent overheating.
The maximum cable length supported by the SN65C23243DLR depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 100 Mbps. For longer cable lengths, repeaters or active cables may be required.
The SN65C23243DLR can be configured for half-duplex or full-duplex operation by setting the appropriate pins and registers. For half-duplex operation, the TXEN pin should be tied low, and for full-duplex operation, the TXEN pin should be tied high. Additionally, the device's registers should be programmed to enable or disable the transmitter and receiver accordingly.
The recommended power-up sequence for the SN65C23243DLR is to apply power to the VCC pin first, followed by the VCCIO pin. The power-up sequence should be controlled to ensure that the VCCIO pin is powered up after the VCC pin has reached a stable voltage. This ensures that the device powers up correctly and prevents any potential damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65C23243DLR Overview

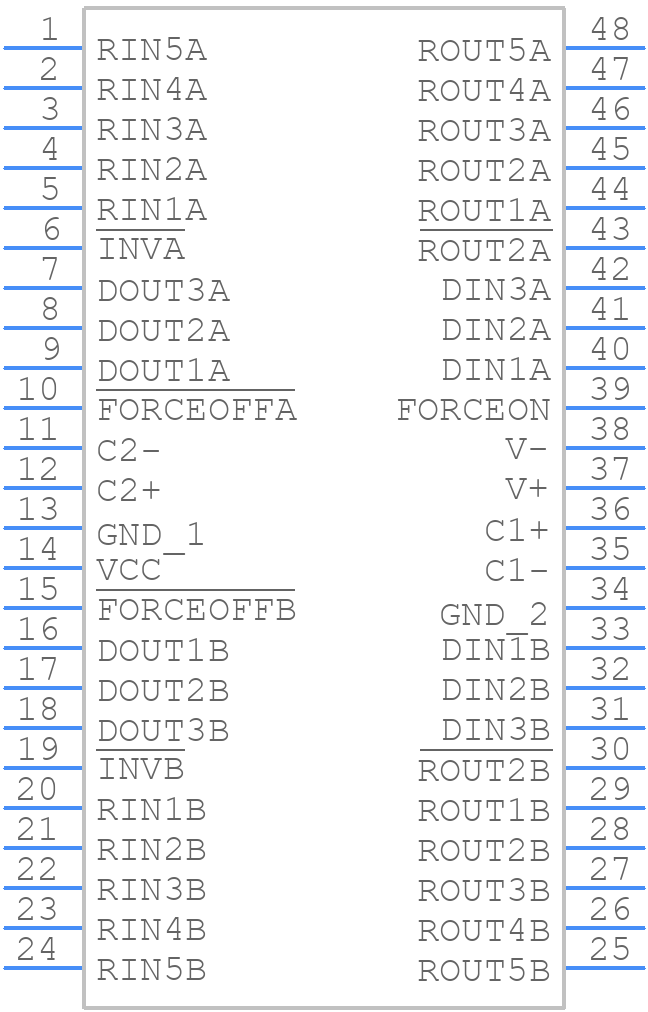

Use the download button to access the SN65C23243DLR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65C,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
