SN65ELT22DGK - Texas Instruments

Description: 5V Dual TTL to Differential PECL Translator

Download SN65ELT22DGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

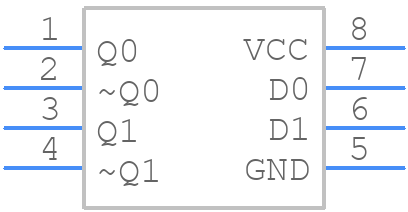

Symbol
SN65ELT22DGK - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65ELT22DGK - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGK0008A
click to zoom
3D Models
SN65ELT22DGK - Texas Instruments - 3D model - Small Outline Packages - DGK0008A
click to zoom

SN65ELT22DGK Details

  • Manufacturer Part Number:

    SN65ELT22DGK

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Package Description:

    TSSOP-8

  • Pin Count:

    8

  • ECCN Code:

    5A991.B.1

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Family:

    65ELT

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    22 mA

  • Prop. Delay@Nom-Sup:

    1.1 ns

  • Propagation Delay (tpd):

    1.1 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.7 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

SN65ELT22DGK Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65ELT22DGK depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 1 Gbps.
  • To ensure signal integrity with the SN65ELT22DGK, it is recommended to follow proper PCB layout and design guidelines, such as using differential pairs, minimizing trace lengths, and using signal shielding. Additionally, the device's built-in features such as equalization and de-emphasis can be used to improve signal quality.
  • Yes, the SN65ELT22DGK is suitable for use in industrial and automotive applications due to its operating temperature range of -40°C to 125°C and its compliance with relevant industry standards such as IEC 61000-4-2 and ISO 7637-2.
  • The SN65ELT22DGK can be configured for different data rates by adjusting the settings of the device's internal registers. The device supports data rates from 10 Mbps to 1 Gbps, and the specific configuration will depend on the desired data rate and application requirements.
  • The power consumption of the SN65ELT22DGK depends on the specific application and operating conditions. However, the device's typical power consumption is around 150 mW at a data rate of 1 Gbps, and it can be as low as 10 mW in low-power mode.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

SN65ELT22DGK Overview

Use the download button to access the SN65ELT22DGK schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65E, or try a keyword search, such as Clock Drivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
