SN65ELT22DGKR - Texas Instruments

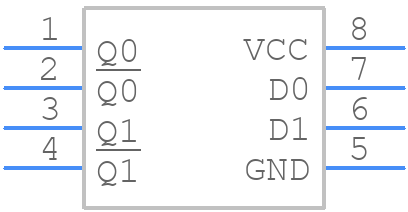

SN65ELT22DGKR Details

• Manufacturer Part Number:

  SN65ELT22DGKR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  MSOP

• Package Description:

  TSSOP-8

• Pin Count:

  8

• Country Of Origin:

  Mainland China, Malaysia, Thailand

• ECCN Code:

  5A991.B.1

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• Family:

  65ELT

• Input Conditioning:

  STANDARD

• JESD-30 Code:

  S-PDSO-G8

• JESD-609 Code:

  e4

• Length:

  3 mm

• Logic IC Type:

  LOW SKEW CLOCK DRIVER

• Moisture Sensitivity Level:

  1

• Number of Functions:

  2

• Number of Terminals:

  8

• Number of True Outputs:

  2

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Packing Method:

  TR

• Peak Reflow Temperature (Cel):

  260

• Power Supply Current-Max (ICC):

  22 mA

• Prop. Delay@Nom-Sup:

  1.1 ns

• Propagation Delay (tpd):

  1.1 ns

• Qualification Status:

  Not Qualified

• Same Edge Skew-Max (tskwd):

  0.1 ns

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max (Vsup):

  5.7 V

• Supply Voltage-Min (Vsup):

  4.2 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  YES

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  3 mm
