SN65HVD252D - Texas Instruments

Description: Texas Instruments SN65HVD252D, CAN Transceiver 1Mbit/s 1-channel ISO 11898-2, 8-Pin SOIC

Download SN65HVD252D Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

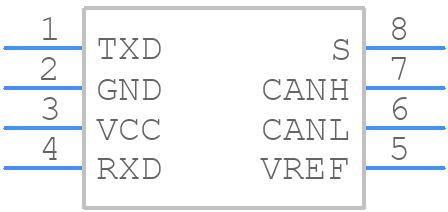

Symbol
SN65HVD252D - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN65HVD252D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D0008A
click to zoom
3D Models
SN65HVD252D - Texas Instruments - 3D model - Small Outline Packages - D0008A
click to zoom

SN65HVD252D Details

  • Manufacturer Part Number:

    SN65HVD252D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Applications:

    NETWORKING

  • Data Rate:

    1000 Mbps

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Screening Level:

    ISO 11898-2

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    80 mA

  • Supply Voltage-Nom:

    5 V

  • Technology:

    BICMOS

  • Telecom IC Type:

    CAN TRANSCEIVER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

SN65HVD252D Frequently Asked Questions (FAQs)

  • The maximum cable length supported by the SN65HVD252D is dependent on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths of up to 100 meters at a data rate of 1 Mbps.
  • To ensure signal integrity and minimize EMI, it is recommended to use a shielded cable, keep the cable length as short as possible, and use a common-mode choke or ferrite bead to filter out high-frequency noise. Additionally, proper PCB layout and grounding techniques should be followed to minimize radiation and coupling.
  • The recommended termination scheme for the SN65HVD252D is a 120-ohm differential termination resistor at the receiving end of the bus. This helps to match the impedance of the bus and reduce reflections.
  • Yes, the SN65HVD252D can be used in a multi-point configuration. However, it is recommended to use a repeater or a hub to ensure that the signal is properly amplified and repeated to each node in the network.
  • The SN65HVD252D supports data rates of up to 1 Mbps. However, the actual data rate may be limited by the specific application and the type of cable used.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN65HVD252D Overview

Use the download button to access the SN65HVD252D schematic symbol, PCB footprint, and 3D model.
