- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SN65HVD61D
- Part Number SN65HVD61D
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D (-R-PDSO-G14)
- Released Date Dec 21, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SN65HVD61D Details
-
Manufacturer Part Number:
SN65HVD61D
-
Brand Name:
Texas Instruments
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Package Description:
SOIC-14
-
Pin Count:
14
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
SN65HVD61D Frequently Asked Questions (FAQs)
-
The maximum cable length supported by the SN65HVD61D depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at a data rate of 1 Mbps. For longer cable lengths or higher data rates, the device may require additional circuitry or signal conditioning.
-
To ensure reliable communication over long distances with the SN65HVD61D, it is recommended to use a twisted-pair cable, maintain a consistent impedance throughout the transmission line, and use proper termination and shielding techniques. Additionally, the device's built-in slew-rate control and common-mode rejection can help to improve signal integrity and reduce electromagnetic interference (EMI).
-
Yes, the SN65HVD61D can be used in a multi-point or multi-drop configuration. The device's differential output stage and high common-mode rejection ratio (CMRR) make it suitable for use in multi-point applications. However, the specific implementation will depend on the application requirements and the number of nodes in the network.
-
The power consumption of the SN65HVD61D depends on the operating frequency, supply voltage, and output load. The device's typical power consumption is around 15 mA at 3.3 V and 1 Mbps. To reduce power consumption, consider using a lower supply voltage, reducing the output load, or using the device's shutdown mode when not in use.
-
To troubleshoot issues with the SN65HVD61D, start by verifying the device's power supply and output voltage levels. Check the signal integrity using an oscilloscope or logic analyzer, and ensure that the transmission line is properly terminated and shielded. Also, review the device's configuration and programming to ensure that it is set up correctly for the specific application.
Trust Checks
Community Provided
System Verified
Community Approved
SN65HVD61D Overview

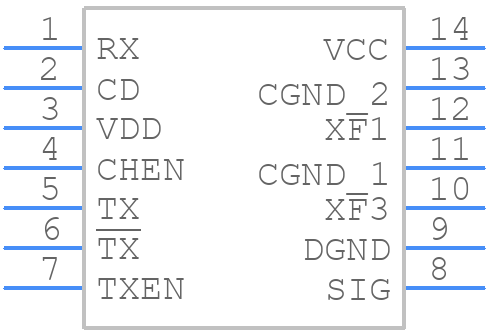

Use the download button to access the SN65HVD61D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65H,
or try a keyword search, such as Line Driver or Receivers
