EIA-422; TIA-422; EIA-485; TIA-485; ISO 8482; X3.277
JESD-30 Code:
R-PDSO-G20
JESD-609 Code:
e4
Length:
12.825 mm
Moisture Sensitivity Level:
1
Number of Functions:
3
Number of Terminals:
20
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Out Swing-Min:
1 V
Output Characteristics:
3-STATE
Output Low Current-Max:
0.0001 A
Output Polarity:
TRUE
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP20,.4
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Receive Delay-Max:
16 ns
Receiver Number of Bits:
3
Seated Height-Max:
2.65 mm
Supply Current-Max:
20 mA
Supply Voltage-Max:
5.25 V
Supply Voltage-Min:
4.75 V
Supply Voltage-Nom:
5 V
Supply Voltage1-Max:
5.25 V
Supply Voltage1-Min:
4.75 V
Supply Voltage1-Nom:
5 V
Surface Mount:
YES
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Transmit Delay-Max:
12 ns
Width:
7.5 mm
SN65LBC171DWR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the application note SLVA704, which includes guidelines for trace routing, component placement, and decoupling to minimize EMI and ensure signal integrity.
The termination resistors for the SN65LBC171DWR depend on the specific application and transmission line impedance. TI recommends using the TDR (Time Domain Reflectometry) method to determine the optimal termination resistors. A detailed explanation can be found in the application note SLVA705.
The maximum cable length supported by the SN65LBC171DWR depends on the specific application, cable type, and signal frequency. As a general guideline, TI recommends limiting the cable length to 10 meters for LVDS signals up to 1.5 Gbps. For longer cable lengths, repeaters or active cables may be necessary.
To handle hot swapping with the SN65LBC171DWR, TI recommends using a hot-swap controller, such as the TPS2115A, to control the power sequencing and voltage ramp-up. Additionally, ensure that the device is powered down before disconnecting the cable to prevent damage.
TI recommends powering up the VCC supply before the VCCA supply, and powering down the VCCA supply before the VCC supply. This ensures that the internal voltage regulators are properly sequenced to prevent damage or malfunction.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LBC171DWR Overview

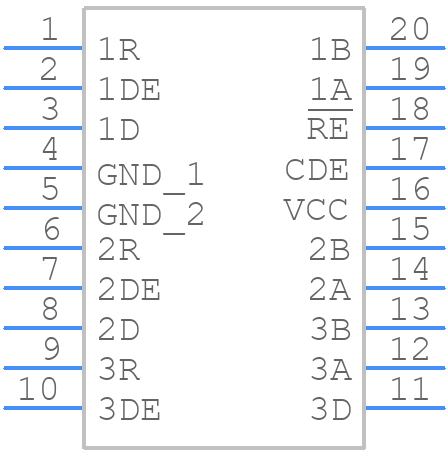

Use the download button to access the SN65LBC171DWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Line Driver or Receivers
