The SN65LVCP40RGZ can support data rates up to 3.2 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and PCIe.
To ensure signal integrity, it's essential to follow proper PCB design and layout guidelines, such as using controlled impedance traces, minimizing signal reflections, and providing adequate power decoupling. Additionally, the use of signal conditioning components, such as terminators and filters, can help to improve signal quality.
The power consumption of the SN65LVCP40RGZ depends on the operating frequency and mode. In typical applications, the device consumes around 150-200 mW of power. However, this can vary depending on the specific use case and operating conditions.
Yes, the SN65LVCP40RGZ is suitable for use in industrial and automotive applications due to its wide operating temperature range (-40°C to 85°C) and high reliability. However, it's essential to ensure that the device is properly qualified and tested for the specific application requirements.
The SN65LVCP40RGZ can be configured for different applications by adjusting the pin settings, such as the output voltage and current, and by using external components, such as resistors and capacitors, to customize the device's behavior. Refer to the datasheet and application notes for specific configuration guidelines.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVCP40RGZ Overview

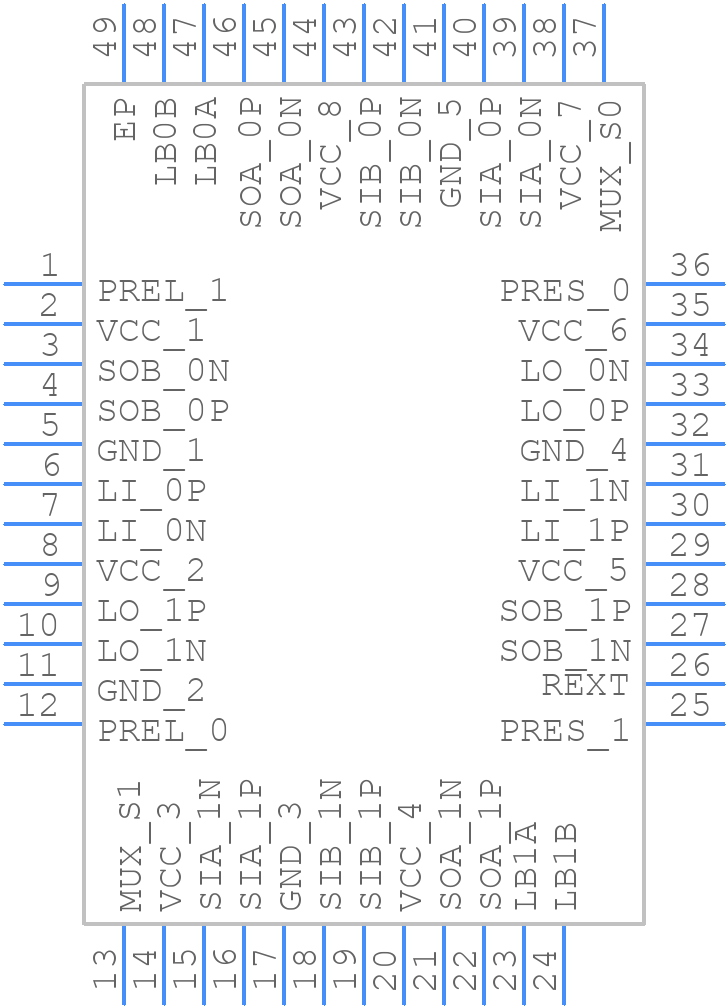

Use the download button to access the SN65LVCP40RGZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Other Telecom ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
