The maximum cable length supported by the SN65LVDS391PWG4 depends on the specific application and the type of cable used. However, as a general guideline, Texas Instruments recommends a maximum cable length of 10 meters for a single-ended input and 20 meters for a differential input.
To ensure signal integrity with the SN65LVDS391PWG4, it is recommended to follow proper PCB design and layout guidelines, such as using differential pairs, minimizing trace length and impedance mismatch, and using termination resistors. Additionally, the device's built-in features such as slew rate control and output pre-emphasis can be used to optimize signal quality.
Yes, the SN65LVDS391PWG4 can be used in a multi-point bus configuration. The device supports up to 32 devices on a single bus, and its built-in features such as bus hold and bus idle detection enable reliable operation in multi-point bus configurations.
Power sequencing is critical when using the SN65LVDS391PWG4. It is recommended to power up the device's VCC supply before the input signals, and to ensure that the input signals are stable before powering up the VCC supply. Additionally, the device's power-on reset (POR) feature can be used to ensure that the device is properly initialized during power-up.
The recommended operating temperature range for the SN65LVDS391PWG4 is -40°C to 85°C. However, the device can operate up to 105°C with reduced performance and reliability. It is recommended to follow proper thermal management and design guidelines to ensure reliable operation within the recommended temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS391PWG4 Overview

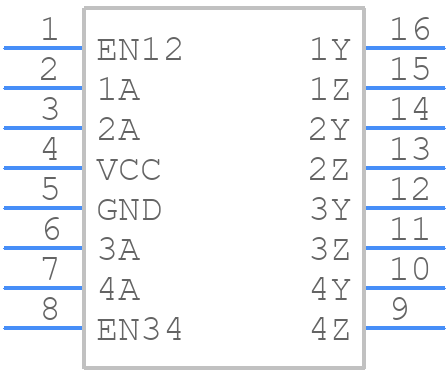

Use the download button to access the SN65LVDS391PWG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
