The maximum cable length supported by the SN65LVDS96DGGR is approximately 10 meters (33 feet) at a data rate of 1.5 Gbps. However, this length can vary depending on the specific application, cable quality, and environmental conditions.
To ensure signal integrity with the SN65LVDS96DGGR, it is recommended to use a differential pair for each signal, maintain a consistent impedance of 100 ohms, and use a common-mode choke or ferrite bead to reduce electromagnetic interference (EMI). Additionally, proper termination and routing of the signals are crucial to maintain signal integrity.
The power consumption of the SN65LVDS96DGGR depends on the operating frequency and the number of channels in use. According to the datasheet, the typical power consumption is around 150 mW per channel at 1.5 Gbps. However, this value can vary depending on the specific application and operating conditions.
While the SN65LVDS96DGGR is designed for LVDS applications, it can be used for other high-speed differential signaling applications with some modifications. However, it is essential to ensure that the device is operated within its specified voltage and current limits, and that the signal integrity and termination requirements are met.
To troubleshoot issues with the SN65LVDS96DGGR, start by verifying the power supply voltage, clock frequency, and signal integrity. Use an oscilloscope to check the signal waveforms and ensure that the signals are within the specified voltage and timing limits. Also, check for any signs of overheating, electrical overstress, or physical damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN65LVDS96DGGR Overview

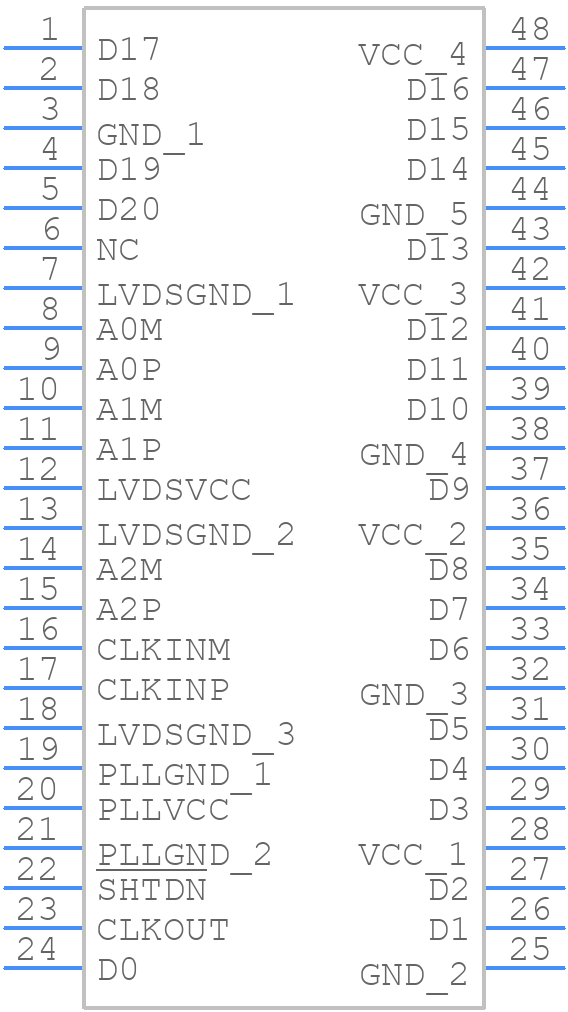

Use the download button to access the SN65LVDS96DGGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN65L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
