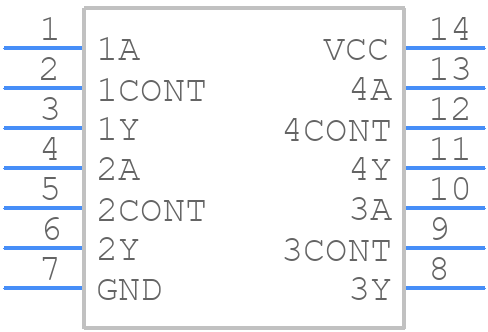

SN75189APWR - Texas Instruments

SN75189APWR Details

• Manufacturer Part Number:

  SN75189APWR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Country Of Origin:

  Malaysia

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Date Of Intro:

  2018-09-28

• Manufacturer:

  Texas Instruments

• YTEOL:

  15

• High Level Input Current-Max:

  0.0083 A

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE RECEIVER

• Interface Standard:

  EIA-232-F; TIA-232-F; V.28

• JESD-30 Code:

  R-PDSO-G14

• JESD-609 Code:

  e4

• Length:

  5 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  4

• Number of Terminals:

  14

• Operating Temperature-Max:

  70 °C

• Out Swing-Min:

  2.15 V

• Output Characteristics:

  TOTEM-POLE

• Output Low Current-Max:

  0.01 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Receive Delay-Max:

  85 ns

• Receiver Number of Bits:

  4

• Seated Height-Max:

  1.2 mm

• Supply Current-Max:

  26 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  YES

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Transmit Delay-Max:

  85 ns

• Width:

  4.4 mm
