Texas Instruments provides a recommended PCB layout in the application note SLVAE03, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SN75ALS160DWRG4 has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a copper pour with multiple vias can be used to connect the thermal pad to the thermal plane. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.
While the datasheet specifies a maximum clock frequency of 100 MHz, the actual operating frequency of the SN75ALS160DWRG4 can be higher depending on the system design and signal integrity. However, it's recommended to perform signal integrity analysis and simulation to ensure reliable operation at higher frequencies.
Yes, the SN75ALS160DWRG4 is compatible with 3.3V systems. The device has a wide supply voltage range of 2.3V to 5.5V, making it suitable for use in 3.3V systems. However, the output voltage swing may be reduced at lower supply voltages, which may affect signal integrity.
Texas Instruments provides a troubleshooting guide in the application note SLVAE04, which covers common issues such as signal integrity problems, power supply noise, and thermal management. Additionally, engineers can use oscilloscopes, logic analyzers, and other diagnostic tools to identify and debug issues with the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75ALS160DWRG4 Overview

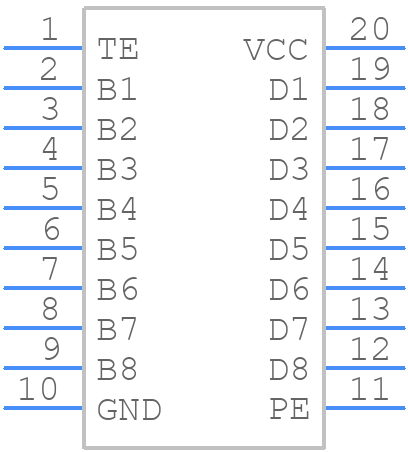

Use the download button to access the SN75ALS160DWRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75A,
or try a keyword search, such as Line Driver or Receivers
