The SN75ALS170J can handle data rates up to 100 Mbps, making it suitable for high-speed applications such as video transmission and high-speed data acquisition.
To ensure signal integrity, use proper PCB layout techniques, such as keeping the signal traces short and away from noise sources, using impedance-matched transmission lines, and providing adequate decoupling capacitors. Additionally, consider using a shielded cable or twisted pair wiring to minimize electromagnetic interference (EMI).
The SN75ALS170J is rated for operation over a temperature range of -40°C to 85°C. However, it's essential to note that the device's performance and reliability may degrade at extreme temperatures. Ensure that your design takes into account the operating temperature range and provides adequate thermal management.
Yes, the SN75ALS170J is designed for differential signaling applications. It provides a high common-mode rejection ratio (CMRR) and can handle differential signals with a voltage swing of up to 2V. This makes it suitable for applications such as RS-422, RS-485, and LVDS.
The termination resistors for the SN75ALS170J should be chosen based on the characteristic impedance of the transmission line and the desired signal integrity. A general rule of thumb is to use a termination resistor equal to the characteristic impedance of the transmission line (e.g., 100 ohms for a 100-ohm transmission line). Consult the datasheet and application notes for more specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75ALS170J Overview

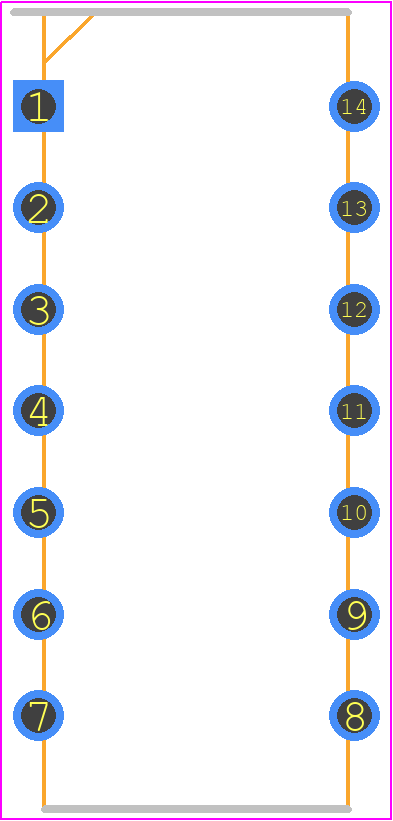

Use the download button to access the SN75ALS170J schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75A,
or try a keyword search, such as Line Driver or Receivers
