Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended operating conditions and thermal management guidelines provided in the datasheet. Additionally, consider using thermal pads or heat sinks to dissipate heat, and ensure good airflow around the device.
When using the SN75DP119RHHT in a system with multiple voltage domains, it is crucial to ensure that the device is powered from a stable and regulated voltage source. Additionally, consider using level shifters or voltage translators to ensure compatible voltage levels between domains, and follow proper signal routing and termination guidelines to minimize signal integrity issues.
To troubleshoot issues with the SN75DP119RHHT, start by reviewing the device's operating conditions, signal routing, and termination. Use oscilloscopes or logic analyzers to capture and analyze signal waveforms, and consult the datasheet and application notes for guidance on troubleshooting common issues. If necessary, contact Texas Instruments' technical support for further assistance.
When using the SN75DP119RHHT in a system with high-speed signals (>1 Gbps), it is essential to follow proper signal routing and termination guidelines to minimize signal integrity issues. Consider using controlled impedance PCB traces, and ensure that the device is powered from a stable and regulated voltage source. Additionally, consult the datasheet and application notes for guidance on high-speed signal design and layout.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN75DP119RHHT Overview

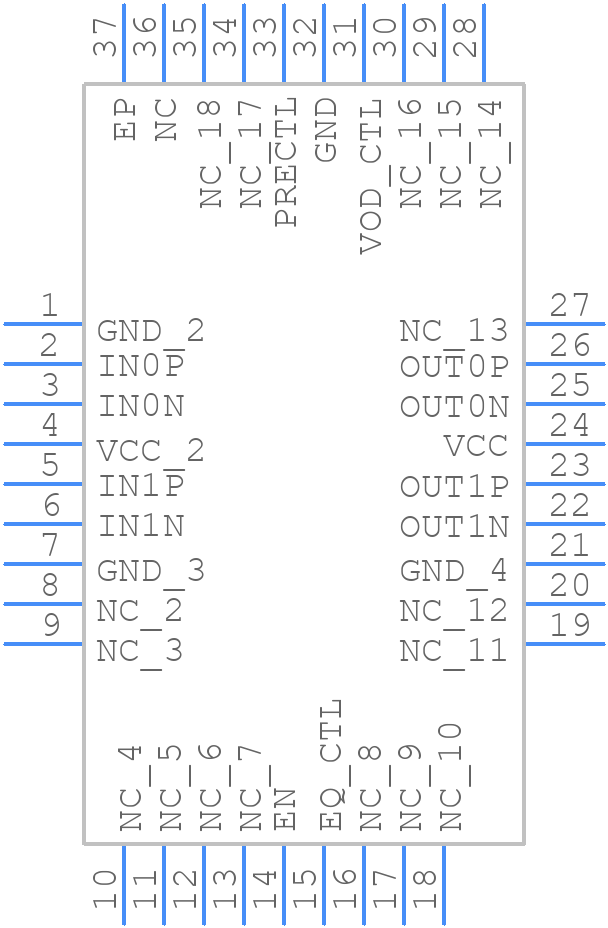

Use the download button to access the SN75DP119RHHT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75D,
or try a keyword search, such as Other Consumer ICs
