SN75DP120RHHT - Texas Instruments

Description: DisplayPort 1:1 Dual-Mode Repeater

Download SN75DP120RHHT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

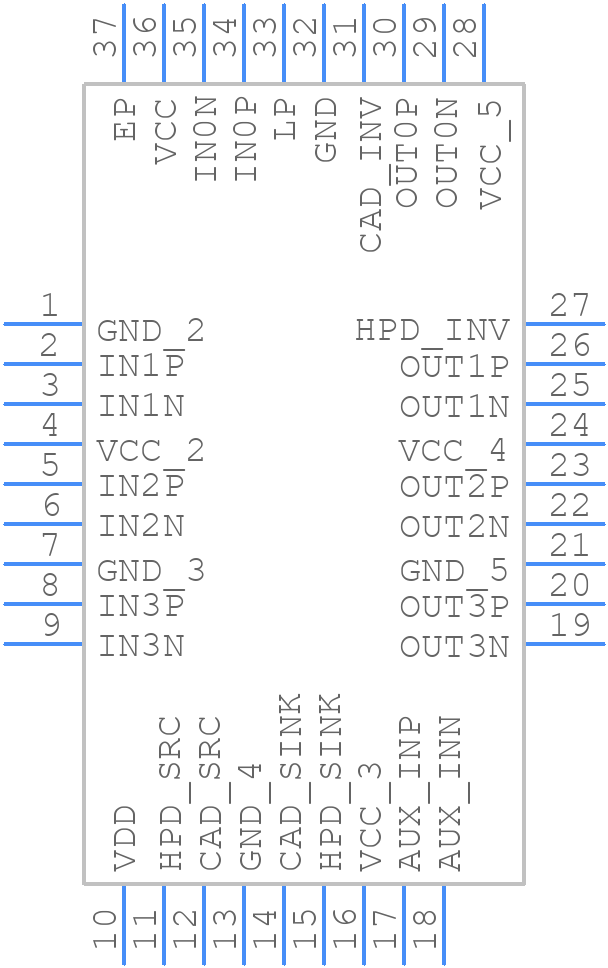

SN75DP120RHHT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN75DP120RHHT - Texas Instruments PCB footprint - Other - Other - QFN50P600X600X100-37N
click to zoom
3D Models
SN75DP120RHHT - Texas Instruments - 3D model - Other - QFN50P600X600X100-37N
click to zoom

SN75DP120RHHT Details

  • Manufacturer Part Number:

    SN75DP120RHHT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    36

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    DIFFERENTIAL SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • JESD-30 Code:

    S-PQCC-N36

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    85 °C

  • Out Swing-Min:

    0.35 V

  • Output Low Current-Max:

    0.0001 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC36,.25SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    22 ns

  • Receiver Number of Bits:

    4

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    200 mA

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Transmit Delay-Max:

    22 ns

  • Width:

    6 mm

SN75DP120RHHT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the application note SLVAE04, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize signal integrity issues.
  • The SN75DP120RHHT has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a copper pour on the PCB can be used to dissipate heat. Additionally, the device's thermal resistance can be reduced by using a heat sink or a thermal interface material.
  • The maximum cable length supported by the SN75DP120RHHT depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at data rates up to 3.125 Gbps. For longer cable lengths, repeaters or active cables may be required.
  • The SN75DP120RHHT can be configured for different data rates using the RATE_SEL pins. The device supports data rates from 100 Mbps to 3.125 Gbps, and the specific configuration depends on the application requirements. Refer to the datasheet and application notes for more information on configuring the device for different data rates.
  • The power consumption of the SN75DP120RHHT depends on the specific application and the data rate. However, the typical power consumption is around 350 mW at 3.125 Gbps. The device also has a low-power mode that can reduce power consumption to around 100 mW.
