Texas Instruments provides a recommended PCB layout in the application note SLVA466, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
The SN75LBC172DW has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a copper pour with multiple vias can be used to connect the thermal pad to the thermal plane. Additionally, a thermal interface material (TIM) can be used to improve heat transfer between the device and the heat sink.
The maximum cable length supported by the SN75LBC172DW depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 100 meters at data rates up to 100 Mbps. For longer cable lengths or higher data rates, repeaters or active cables may be required.
Yes, the SN75LBC172DW can be used in a redundant or fault-tolerant system. The device has built-in fault detection and reporting capabilities, and it can be configured to operate in a redundant mode with another device. This allows the system to continue operating even if one device fails.
To ensure EMC with the SN75LBC172DW, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and ensure that the device is properly grounded and decoupled. Additionally, Texas Instruments provides EMC guidelines and test results in the device's datasheet and application notes.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
SN75LBC172DW Overview

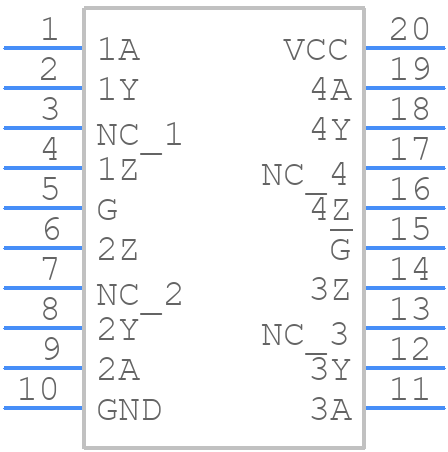

Use the download button to access the SN75LBC172DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75L,
or try a keyword search, such as Line Driver or Receivers
