Texas Instruments provides a recommended PCB layout in the application note SLVA466, which includes guidelines for trace routing, component placement, and thermal management to ensure optimal performance and minimize signal integrity issues.
The SN75LVCP412CDRTJR has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a thermal pad connected to a ground plane can be used to dissipate heat. Additionally, the device's thermal resistance (RθJA) is specified in the datasheet, which can be used to estimate the junction temperature.
The maximum cable length supported by the SN75LVCP412CDRTJR depends on the specific application and the type of cable used. However, as a general guideline, the device can support cable lengths up to 10 meters at data rates up to 3.125 Gbps. For longer cable lengths or higher data rates, signal repeaters or active cables may be required.
The SN75LVCP412CDRTJR is a programmable device that can be configured for different data rates using the I2C interface. The device's register map is provided in the datasheet, which includes settings for data rate, output swing, and other parameters. The device can be configured using a microcontroller or a dedicated I2C controller.
The power consumption of the SN75LVCP412CDRTJR depends on the specific application and the data rate. The device's power consumption is specified in the datasheet, which includes typical values for power supply current and power dissipation. The device typically consumes around 100-200 mW of power at 3.3V supply voltage and 3.125 Gbps data rate.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75LVCP412CDRTJR Overview

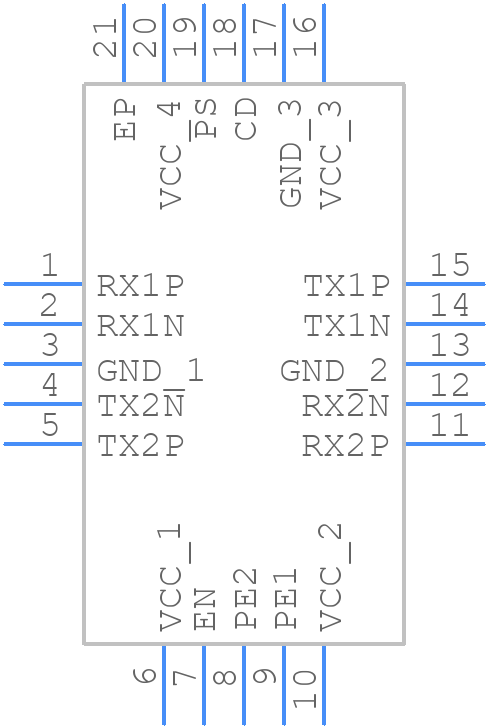

Use the download button to access the SN75LVCP412CDRTJR schematic symbol, PCB footprint, and 3D model.
