Part Image

SN75LVDS84ADGGG4 - Texas Instruments

Description: Bus Transmitters FlatLink Transmitter

Download SN75LVDS84ADGGG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

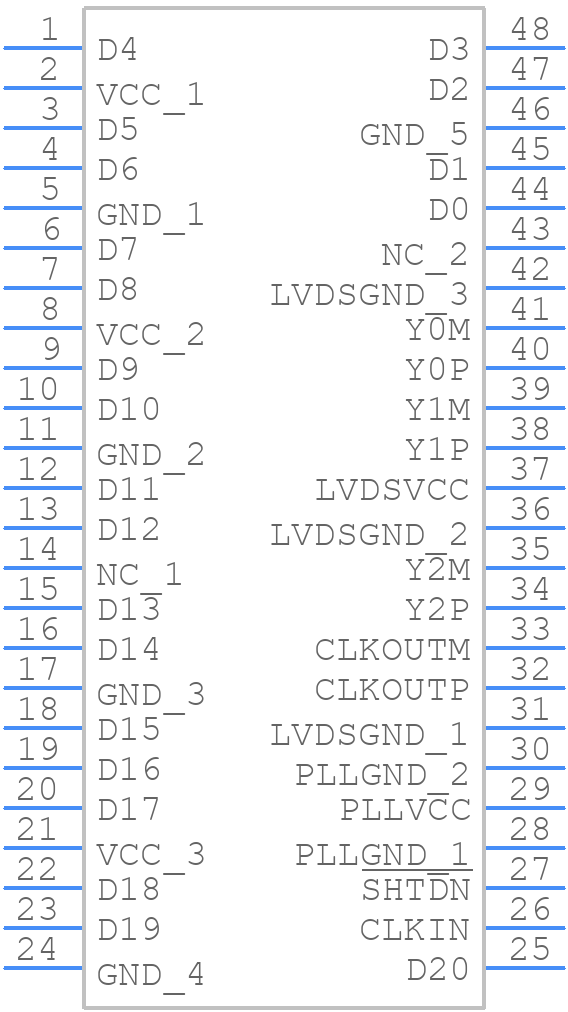

SN75LVDS84ADGGG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SN75LVDS84ADGGG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGG0048A
click to zoom
3D Models
SN75LVDS84ADGGG4 - Texas Instruments - 3D model - Small Outline Packages - DGG0048A
click to zoom

SN75LVDS84ADGGG4 Details

  • Manufacturer Part Number:

    SN75LVDS84ADGGG4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP

  • Package Description:

    TSSOP-48

  • Pin Count:

    48

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Differential Output:

    YES

  • Driver Number of Bits:

    4

  • Input Characteristics:

    STANDARD

  • Interface IC Type:

    LINE DRIVER

  • Interface Standard:

    EIA-644; TIA-644

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    4

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    70 °C

  • Output Characteristics:

    DIFFERENTIAL

  • Output Polarity:

    INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.3,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Supply Voltage1-Max:

    3.6 V

  • Supply Voltage1-Min:

    3 V

  • Supply Voltage1-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

SN75LVDS84ADGGG4 Frequently Asked Questions (FAQs)

  • The maximum cable length depends on the signal frequency, cable quality, and termination. As a general guideline, Texas Instruments recommends a maximum cable length of 10 meters at 1.5 Gbps and 5 meters at 3 Gbps. However, it's recommended to perform signal integrity analysis and testing to determine the maximum cable length for a specific application.
  • The LVDS outputs of the SN75LVDS84ADGGG4 should be terminated with a 100-ohm differential load to ensure proper signal integrity and minimize reflections. A 100-ohm resistor can be connected between the positive and negative outputs of each channel.
  • The power-up sequence for the SN75LVDS84ADGGG4 is not critical, but it's recommended to power up the VCC supply before the input signals to ensure proper device operation. Additionally, the input signals should be stable before the VCC supply reaches its nominal value.
  • No, the SN75LVDS84ADGGG4 is not designed for multi-point LVDS bus configurations. It's intended for point-to-point connections only. Using it in a multi-point configuration may result in signal degradation and errors.
  • The SN75LVDS84ADGGG4 has an operating temperature range of -40°C to 85°C. However, the device's performance and reliability may degrade at extreme temperatures. It's recommended to operate the device within the specified temperature range for optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SN75LVDS84ADGGG4 Overview

Use the download button to access the SN75LVDS84ADGGG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75L, or try a keyword search, such as Line Driver or Receivers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
