Texas Instruments provides a recommended PCB layout in the application note SLVAE03, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The SN75LVDT388ADBT has a built-in thermal shutdown feature that disables the device when the junction temperature exceeds 150°C. To handle thermal shutdown and warning, you can use the TSD (Thermal Shutdown) pin to monitor the device's thermal status and implement a thermal management strategy in your system design.
The maximum cable length supported by the SN75LVDT388ADBT depends on the specific application and the type of cable used. As a general guideline, Texas Instruments recommends keeping the cable length as short as possible (less than 10 meters) to minimize signal attenuation and ensure reliable data transmission.
Yes, the SN75LVDT388ADBT can be used in a multi-point or daisy-chain configuration, but it requires careful consideration of the system design and layout to ensure reliable data transmission and minimize signal reflections. Texas Instruments provides guidelines for multi-point and daisy-chain configurations in the application note SLVAE03.
To ensure EMC in your design, follow the guidelines provided in the Texas Instruments application note SLVAE03, which includes recommendations for PCB layout, component selection, and shielding to minimize electromagnetic interference (EMI) and ensure compliance with relevant EMC standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75LVDT388ADBT Overview

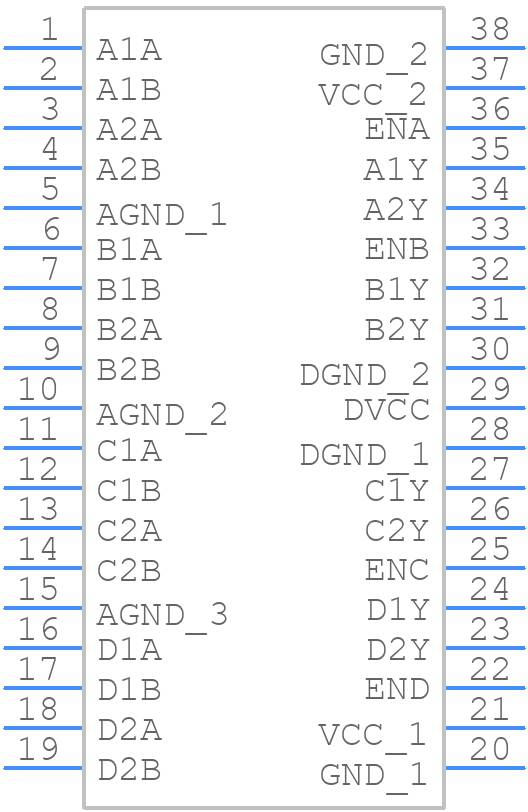

Use the download button to access the SN75LVDT388ADBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75L,
or try a keyword search, such as Line Driver or Receivers
