Texas Instruments provides a recommended PCB layout in the application note SLVAE03, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, it is essential to follow the recommended thermal management guidelines, including providing adequate heat sinking, using thermal interface materials, and keeping the device within its specified operating temperature range.
When using the SN75LVDT390PWR in a system with multiple voltage domains, it is crucial to ensure that the device is powered from a stable, low-noise voltage source, and that the voltage domains are properly isolated to prevent noise coupling and ensure reliable operation.
To troubleshoot issues with the SN75LVDT390PWR, start by verifying the power supply voltage, checking for proper termination and loading, and ensuring that the device is operated within its specified parameters. Use oscilloscopes and logic analyzers to debug the signal integrity and timing. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
The SN75LVDT390PWR has built-in ESD protection and latch-up prevention measures, including diodes and resistors to protect against electrostatic discharge and latch-up. However, it is still essential to follow proper handling and assembly procedures to prevent damage during manufacturing and operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75LVDT390PWR Overview

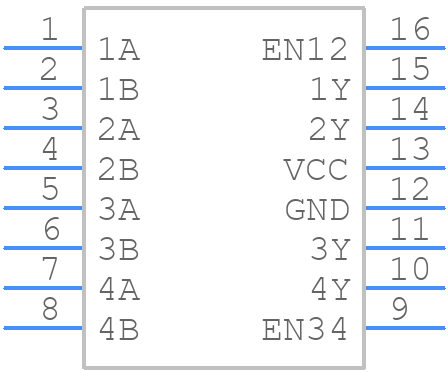

Use the download button to access the SN75LVDT390PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
