Texas Instruments provides a recommended PCB layout in the application note SLVA466, which includes guidelines for signal routing, component placement, and power supply decoupling to minimize signal integrity issues and ensure optimal performance.
The SN75LVPE5421RUAT has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. A thermal via array or a copper pour on the PCB can be used to dissipate heat. Additionally, the device's power consumption and operating temperature range should be considered when designing the system's thermal management.
The recommended input signal amplitude is between 100 mV and 1.4 V, and the frequency range is up to 6.25 Gbps. However, the optimal input signal amplitude and frequency may vary depending on the specific application and system requirements.
To ensure signal integrity and minimize jitter, it is recommended to use a well-designed PCB with controlled impedance, minimize signal routing distances, and use signal termination resistors. Additionally, the device's input signal amplitude and frequency should be within the recommended range, and the power supply should be well-regulated and decoupled.
Texas Instruments recommends using 0.1 μF to 1 μF decoupling capacitors with a voltage rating of 2.5 V or higher, placed as close as possible to the device's power pins. The exact value and type of capacitor may vary depending on the specific application and system requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SN75LVPE5421RUAT Overview

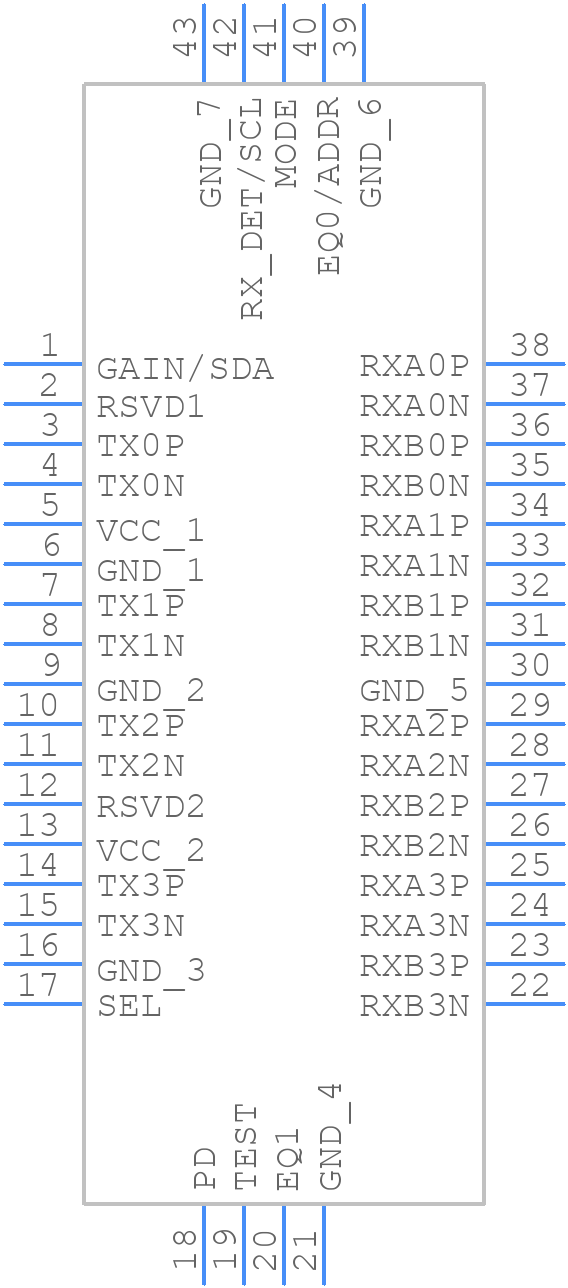

Use the download button to access the SN75LVPE5421RUAT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SN75L,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
