SRC4192IDB - Texas Instruments

Description: Sample Rate Converter 28-Pin SSOP Rail SRC4192IDB, Sample Rate Converter, 24 bit- 212ksps, 28-Pin SSOP

Download SRC4192IDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

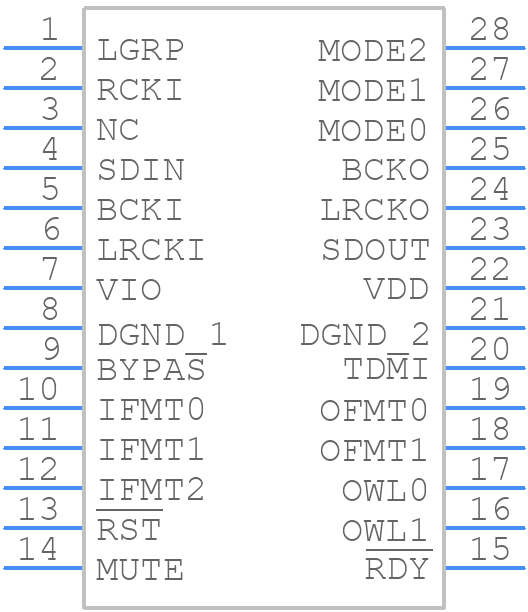

Symbol
SRC4192IDB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SRC4192IDB - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DB (R-PDSO-G28)
click to zoom
3D Models
SRC4192IDB - Texas Instruments - 3D model - Small Outline Packages - DB (R-PDSO-G28)
click to zoom

SRC4192IDB Details

  • Manufacturer Part Number:

    SRC4192IDB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SSOP

  • Pin Count:

    28

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-PDSO-G28

  • JESD-609 Code:

    e4

  • Length:

    10.2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP28,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5.3 mm

SRC4192IDB Frequently Asked Questions (FAQs)

  • It's recommended to follow the layout guidelines provided in the datasheet, keeping the device away from high-current paths and noise sources. Place decoupling capacitors close to the device, and use a solid ground plane to minimize noise and EMI.
  • Optimize the output filter design by selecting the right inductor and capacitor values based on the output voltage and current requirements. Use the datasheet's recommended values as a starting point and simulate the design using tools like TI's WEBENCH or LTspice.
  • Ensure good thermal conductivity by using a thermal pad or heat sink, and follow the recommended PCB layout guidelines. Keep the device away from heat sources, and consider using a thermal interface material to improve heat dissipation.
  • Use an oscilloscope to monitor the output voltage and current. Check the input voltage, output load, and PCB layout for any issues. Verify the component values and placement, and consult the datasheet and application notes for troubleshooting guidelines.
  • Yes, the SRC4192IDB is qualified for automotive and high-reliability applications. However, ensure you follow the recommended design and layout guidelines, and consult with TI's support team for specific requirements and qualifications.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SRC4192IDB Overview

Use the download button to access the SRC4192IDB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRC41, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
