Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The SRC4193IDBR requires a 3.3V or 5V power supply, and it's essential to ensure the power supply is clean and stable. Use a high-quality voltage regulator, and add decoupling capacitors (e.g., 10uF and 100nF) close to the device's power pins. Also, make sure the power supply can provide the required current, which is typically around 100mA.
The SRC4193IDBR can operate up to 100MHz, but the maximum clock frequency depends on the specific application and the quality of the clock signal. It's recommended to use a high-quality clock source, and to ensure the clock signal is clean and stable. Additionally, the device's clock frequency should be limited to 50MHz when using the internal oscillator.
The SRC4193IDBR has a programmable output voltage, which can be set using the VOUT_SEL pins. The output voltage can be set to 1.5V, 1.8V, 2.5V, or 3.3V. The VOUT_SEL pins should be connected to either VCC or GND to select the desired output voltage. Refer to the datasheet for the specific pin connections and voltage settings.
The SRC4193IDBR has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB. This helps to dissipate heat efficiently. Additionally, it's recommended to use a thermal interface material (e.g., thermal tape or thermal grease) between the device and the heat sink. Ensure good airflow around the device to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
SRC4193IDBR Overview

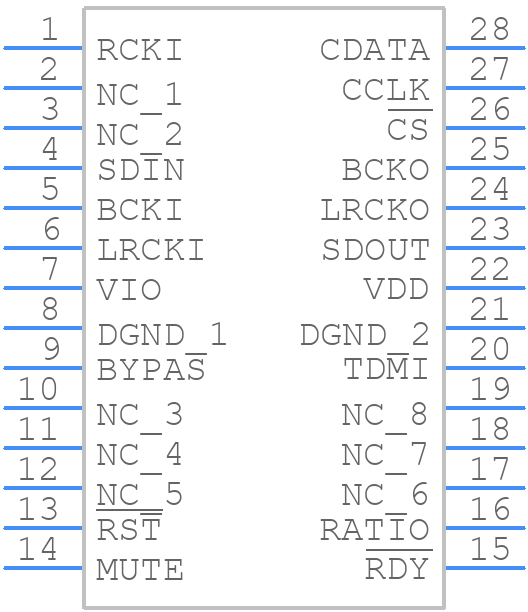

Use the download button to access the SRC4193IDBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SRC41,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
