SSM6K211FE,LF - Toshiba

Description: MOSFET Small-Signal MOSFET

Download SSM6K211FE,LF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

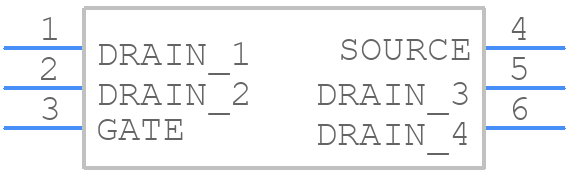

Symbol
SSM6K211FE,LF - Toshiba - PCB symbol
click to zoom
PCB Footprints
SSM6K211FE,LF - Toshiba PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SOT-563
click to zoom
3D Models
SSM6K211FE,LF - Toshiba - 3D model - SO Transistor Flat Lead - SOT-563
click to zoom

SSM6K211FE,LF Details

  • Manufacturer Part Number:

    SSM6K211FE,LF

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Configuration:

    SINGLE WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    20 V

  • Drain Current-Max (ID):

    3.2 A

  • Drain-source On Resistance-Max:

    0.059 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • Feedback Cap-Max (Crss):

    85 pF

  • JESD-30 Code:

    R-PDSO-F6

  • Number of Elements:

    1

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    N-CHANNEL

  • Power Dissipation-Max (Abs):

    0.5 W

  • Surface Mount:

    YES

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

SSM6K211FE,LF Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. The device should be placed near a thermal pad or a heat sink to ensure efficient heat dissipation.
  • Monitor the device's voltage, current, and temperature to ensure they are within the specified limits. Use a thermal monitoring system and overcurrent protection to prevent damage.
  • A gate drive circuit with a high current capability and a fast rise/fall time is recommended. A gate resistor value between 10-20 ohms is suitable for most applications.
  • The internal diode can be used as a freewheeling diode, but it's recommended to use an external diode with a faster recovery time to reduce losses and EMI.
  • The maximum allowed voltage overshoot is 10% above the maximum rated voltage. Exceeding this limit can reduce the device's lifespan or cause failure.
