The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
While the ST201V360K052 is a robust capacitor, it's still important to consider the vibration specifications. Cornell Dubilier recommends following the IEC 60068-2-6 standard for vibration testing. If your application exceeds these specifications, you may need to consult with the manufacturer or consider additional mechanical support.
The ESR of the ST201V360K052 is relatively low, which is beneficial for high-frequency applications. However, it's crucial to consider the ESR in your circuit design, as it can impact the capacitor's ability to filter noise and regulate voltage. Consult the datasheet and application notes for more information on ESR and its effects.
The ST201V360K052 is a high-quality capacitor, but it's essential to evaluate its suitability for high-reliability or safety-critical applications. Cornell Dubilier offers specialized capacitors for these applications, such as their DC Film Capacitor series. Consult with the manufacturer to determine the best capacitor for your specific requirements.
The ST201V360K052 has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, if your application involves extreme humidity or moisture, you may need to consider additional protection measures, such as conformal coating or hermetic sealing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ST201V360K052 Overview

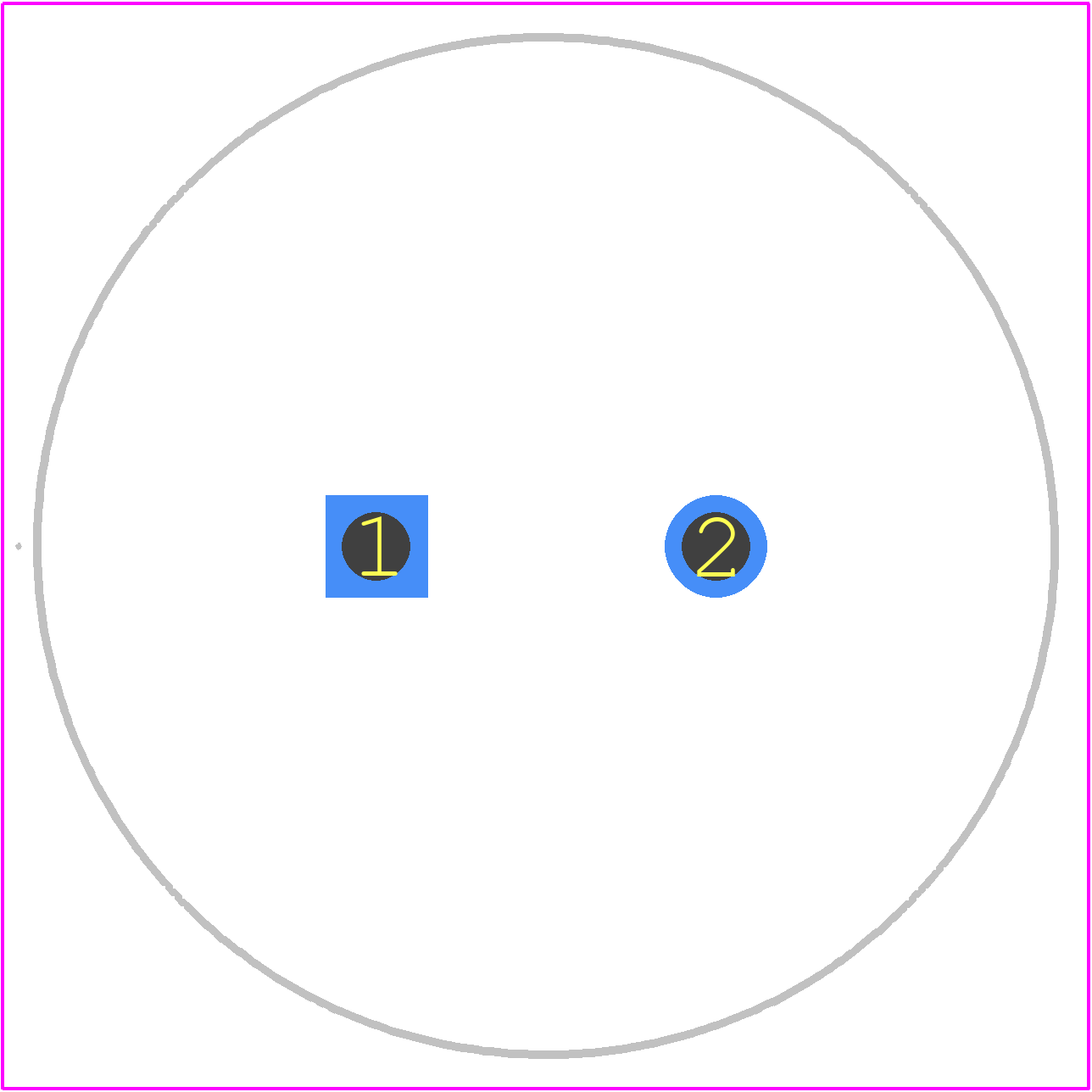

Use the download button to access the ST201V360K052 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ST201,
or try a keyword search, such as Aluminum Electrolytic Capacitors
