ST207ECPR - STMicroelectronics

Description: +/- 15 kV ESD protected 5 V RS-232 transceiver

Download ST207ECPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

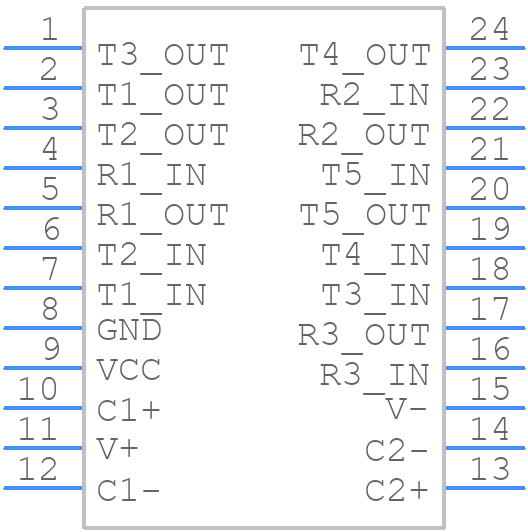

Symbol
ST207ECPR - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
ST207ECPR - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - SSOP24
click to zoom
3D Models
ST207ECPR - STMicroelectronics - 3D model - Small Outline Packages - SSOP24
click to zoom

ST207ECPR Details

  • Manufacturer Part Number:

    ST207ECPR

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    ROHS COMPLIANT, SSOP-24

  • Pin Count:

    24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Differential Output:

    NO

  • Driver Number of Bits:

    5

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    LINE TRANSCEIVER

  • Interface Standard:

    EIA-232-E; TIA-232-E; V.28

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    8.2 mm

  • Number of Functions:

    3

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    70 °C

  • Out Swing-Min:

    10 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SSOP

  • Package Equivalence Code:

    SSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Receive Delay-Max:

    10000 ns

  • Receiver Number of Bits:

    3

  • Seated Height-Max:

    2 mm

  • Supply Current-Max:

    5 mA

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    4.75 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    NICKEL PALLADIUM GOLD

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Transmit Delay-Max:

    3000 ns

  • Width:

    5.3 mm

ST207ECPR Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN5275, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The ST207ECPR has a built-in secure boot mechanism that can be used to ensure the authenticity and integrity of the firmware. STMicroelectronics provides a secure firmware update (SFU) tool and guidelines for implementing secure boot and firmware updates in the application note AN5156.
  • The ST207ECPR has a maximum junction temperature of 125°C. To ensure reliable operation, it's essential to implement proper thermal management, such as using a heat sink, thermal interface material, and ensuring good airflow. The thermal resistance of the package is specified in the datasheet, and thermal simulation tools can be used to estimate the junction temperature.
  • The ST207ECPR is rated for industrial temperature range (-40°C to 85°C) and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates reliably in such conditions. STMicroelectronics provides guidelines for operating the device in harsh environments in the application note AN5274.
  • STMicroelectronics provides a range of tools and resources for debugging and fault finding, including the ST-LINK/V2-1 debugger, STM32CubeMX software, and application notes. Additionally, the device has built-in debug features, such as the Serial Wire Debug (SWD) interface, that can be used to debug and troubleshoot issues.
