STSPIN250 - STMicroelectronics

Description: STMICROELECTRONICS - STSPIN250 - Motor Driver/Controller, DC Brush, 1.8V to 10V, 0.2Ohm Rds On/2.6A/2 Outputs, VFQFPN-16

Download STSPIN250 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

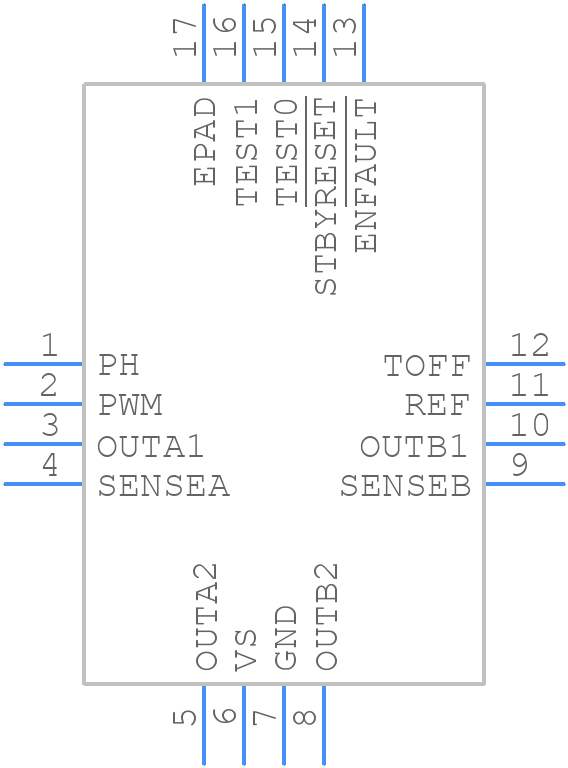

STSPIN250 - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
STSPIN250 - STMicroelectronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - VFQFPN16 (3 x 3mm)_1
click to zoom
3D Models
STSPIN250 - STMicroelectronics - 3D model - Quad Flat No-Lead - VFQFPN16 (3 x 3mm)_1
click to zoom

STSPIN250 Details

  • Manufacturer Part Number:

    STSPIN250

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VFQFPN-16

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    14

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N16

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC16,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    225

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    1.95 mA

  • Supply Voltage-Max (Vsup):

    10 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

STSPIN250 Frequently Asked Questions (FAQs)

  • The maximum voltage that can be applied to the VM pin is 40V, but it's recommended to keep it below 36V to ensure reliable operation.
  • The sense resistor value depends on the motor current and the desired current sense accuracy. A good starting point is to use the formula Rsense = 0.05 / Imax, where Imax is the maximum motor current.
  • The EN pin is an active-high enable input that allows the device to be enabled or disabled. When EN is high, the device is enabled, and when EN is low, the device is disabled and in a low-power state.
  • The STSPIN250 is a general-purpose motor driver, and the configuration depends on the motor type and application. For example, for a stepper motor, you would typically use the STEP and DIR inputs to control the motor, while for a DC motor, you would use the PWM input to control the motor speed.
  • The maximum frequency of the PWM input signal is 100 kHz, but it's recommended to keep it below 50 kHz for most applications to ensure reliable operation.
