Texas Instruments provides a recommended PCB layout in the TAS2553YFFR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
To optimize the TAS2553YFFR for low noise and distortion, ensure proper power supply decoupling, use a low-ESR capacitor for the PVCC pin, and minimize the length of the analog input traces. Additionally, use a differential input configuration and ensure the analog input signals are properly terminated.
The maximum power dissipation of the TAS2553YFFR is dependent on the operating conditions, such as ambient temperature, supply voltage, and output power. Refer to the thermal design and power dissipation calculations in the datasheet to determine the maximum power dissipation for a specific application.
Yes, the TAS2553YFFR is designed for Class-D amplifier applications. It features a high-power output stage and a built-in PWM generator, making it suitable for high-efficiency audio amplification.
To configure the TAS2553YFFR for stereo or multi-channel audio applications, use multiple devices and connect the corresponding audio input channels to each device. Ensure proper synchronization of the clock signals and configure the devices for the desired audio format (e.g., I2S or TDM).
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2553YFFR Overview

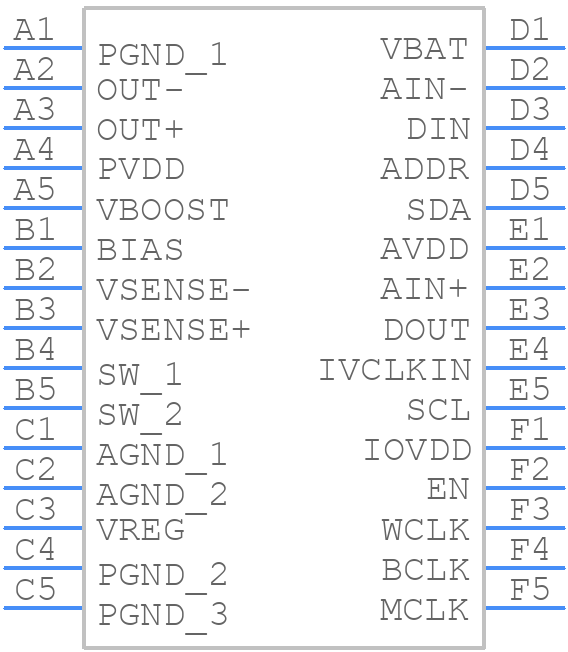

Use the download button to access the TAS2553YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS25,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
