TAS2557YZR - Texas Instruments

Description: 5.7 W Digital Input Class-D Smart Amp with I/V Sense Based Speaker Protection, Advanced EQ and Integ

Download TAS2557YZR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

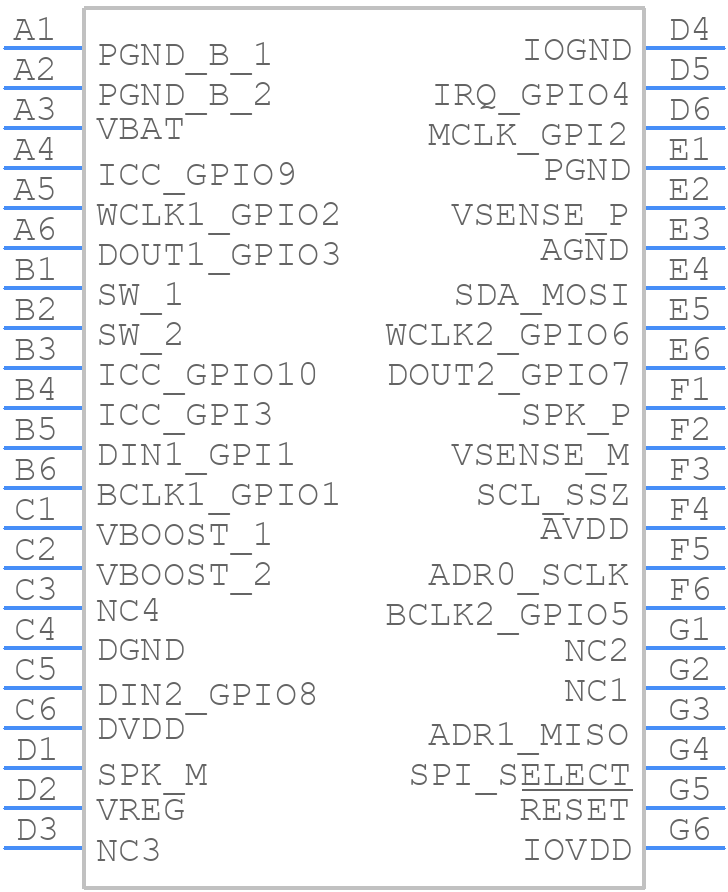

Symbol
TAS2557YZR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS2557YZR - Texas Instruments PCB footprint - BGA - BGA - YZ0042-C01
click to zoom
3D Models
TAS2557YZR - Texas Instruments - 3D model - BGA - YZ0042-C01
click to zoom

TAS2557YZR Details

  • Manufacturer Part Number:

    TAS2557YZR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2016-12-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PBGA-B42

  • JESD-609 Code:

    e1

  • Length:

    3.475 mm

  • Moisture Sensitivity Level:

    1

  • Noise Figure-Nom:

    111 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    5.7 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.635 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.229 mm

TAS2557YZR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TAS2557YZR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
  • To optimize the TAS2557YZR for low noise and distortion, use a low-ESR capacitor for the power supply, keep the analog and digital grounds separate, and use a shielded cable for the audio input. Additionally, ensure the device is operated within the recommended temperature range.
  • The TAS2557YZR can handle up to 2.5W of power per channel. However, the actual power handling capability depends on the load impedance, supply voltage, and ambient temperature. Refer to the datasheet for more information.
  • The TAS2557YZR can be configured for different audio formats such as I2S, PCM, and DSP using the device's control registers. Refer to the datasheet and application notes for more information on configuring the device for specific audio formats.
  • The TAS2557YZR has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve heat transfer between the device and the thermal plane.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS2557YZR Overview

Use the download button to access the TAS2557YZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS25, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
