Texas Instruments provides a recommended PCB layout in the TAS2557YZT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
To optimize the TAS2557YZT for low noise and distortion, ensure proper power supply decoupling, use a low-ESR capacitor for the PVCC pin, and minimize the length of the analog input traces. Additionally, use a differential input configuration and ensure the input signals are properly terminated.
The TAS2557YZT can handle up to 10W of output power per channel, but this depends on the supply voltage, output impedance, and thermal management. It's essential to ensure the device is properly heat-sinked and the PCB is designed to dissipate heat efficiently.
Yes, the TAS2557YZT is a stereo audio amplifier, and it can be used in stereo audio applications. Each channel can be configured independently, allowing for separate gain and filter settings for the left and right channels.
The TAS2557YZT supports various audio formats, including I2S, TDM, and PCM. The configuration depends on the specific audio format and the microcontroller or DSP used in the system. Refer to the TAS2557YZT datasheet and application notes for specific configuration details.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2557YZT Overview

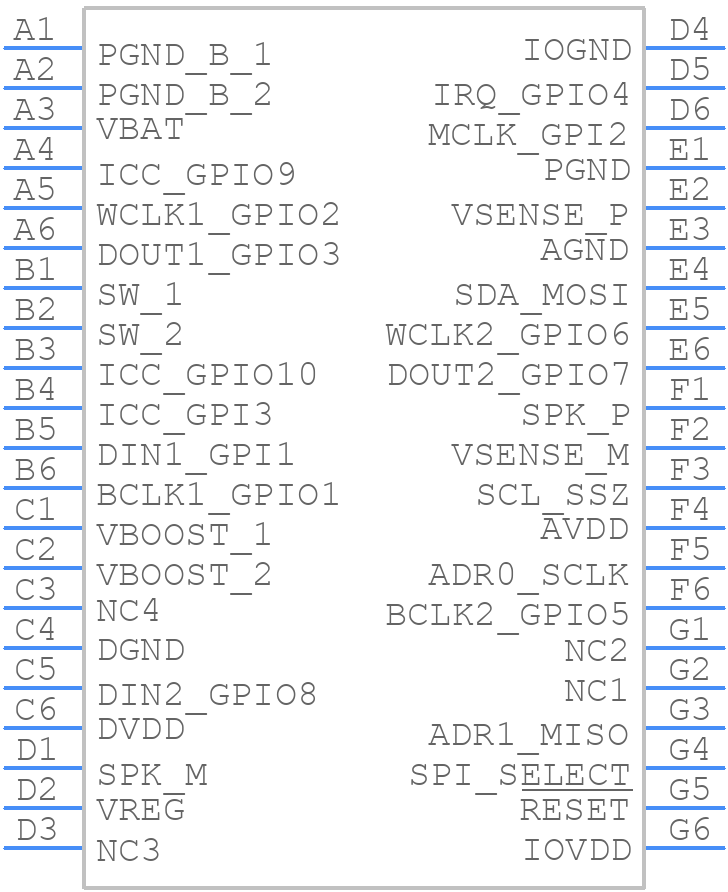

Use the download button to access the TAS2557YZT schematic symbol, PCB footprint, and 3D model.
