Texas Instruments provides a recommended PCB layout in the TAS2560YFFT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
The TAS2560YFFT can be configured for different audio formats using the I2C interface. The device has several registers that control the audio format, such as the sample rate, bit depth, and channel mode. Refer to the datasheet and application notes for specific register settings and configuration examples.
The maximum power consumption of the TAS2560YFFT depends on the operating mode and configuration. According to the datasheet, the maximum power consumption is approximately 450 mW in the highest power mode. However, this can be reduced to around 100 mW in low-power modes.
Thermal management is critical for the TAS2560YFFT, as it can operate at high temperatures. Implement thermal management by providing a heat sink, using thermal vias, and ensuring good airflow around the device. The datasheet provides thermal resistance values and guidelines for thermal design.
The recommended decoupling capacitors for the TAS2560YFFT are 1 μF and 10 μF ceramic capacitors, placed as close as possible to the device's power pins. These capacitors help to filter out noise and ensure stable power supply to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2560YFFT Overview

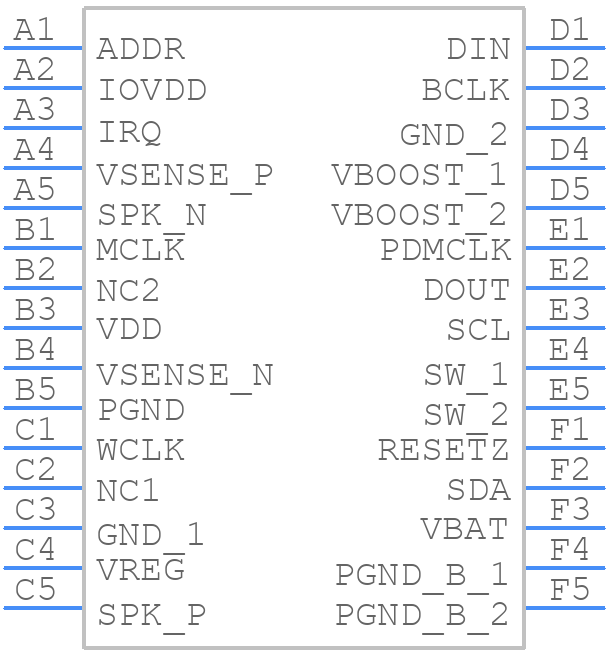

Use the download button to access the TAS2560YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS25,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
