A good PCB layout for the TAS2563YBGR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
To optimize the TAS2563YBGR for low noise and distortion, use a low-ESR capacitor for the power supply, keep the analog and digital grounds separate, and use a high-quality audio codec. Additionally, ensure that the device is operated within its recommended operating conditions.
The TAS2563YBGR can handle up to 10W of power per channel. However, the actual power handling capability depends on the specific application, PCB layout, and thermal management.
The TAS2563YBGR can be configured for different audio formats using the I2C interface. The device supports various audio formats, including PCM, I2S, and DSP. Refer to the datasheet and application notes for specific configuration details.
The TAS2563YBGR has a thermal pad that must be connected to a solid ground plane to ensure effective heat dissipation. A heat sink or thermal interface material can be used to improve thermal management. Ensure that the device is operated within its recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2563YBGR Overview

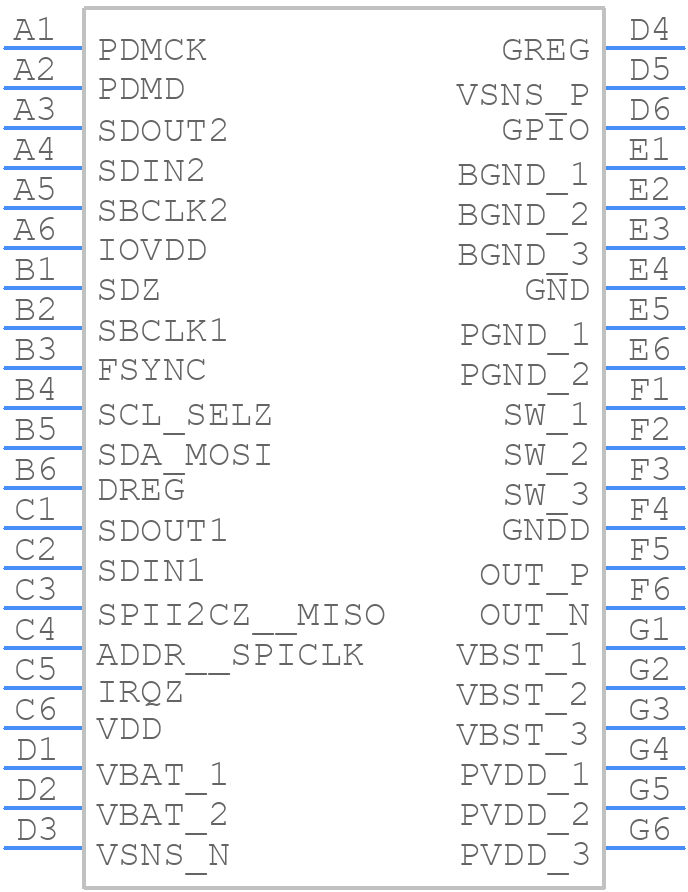

Use the download button to access the TAS2563YBGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS25,
or try a keyword search, such as Audio/Video Amplifiers
