Texas Instruments provides a recommended PCB layout in the TAS2564YBGR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
To optimize the TAS2564YBGR for low noise and distortion, ensure proper power supply decoupling, use a low-ESR capacitor for the PVDD pin, and minimize the length of the analog input traces. Additionally, use a differential input configuration and ensure the analog input signals are properly terminated.
The TAS2564YBGR can handle up to 20W of continuous power dissipation, but this can be increased to 30W with proper heat sinking and thermal management. However, it's essential to follow the recommended thermal design guidelines to avoid overheating and ensure reliable operation.
Yes, the TAS2564YBGR can be used in a stereo audio application by using two devices, one for each channel. However, it's essential to ensure proper synchronization and matching of the devices to maintain channel-to-channel isolation and minimize crosstalk.
To troubleshoot common issues with the TAS2564YBGR, start by verifying the power supply and input signal integrity. Check for proper decoupling, termination, and routing. Use an oscilloscope to analyze the output signal and identify any signs of oscillation or distortion. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2564YBGR Overview

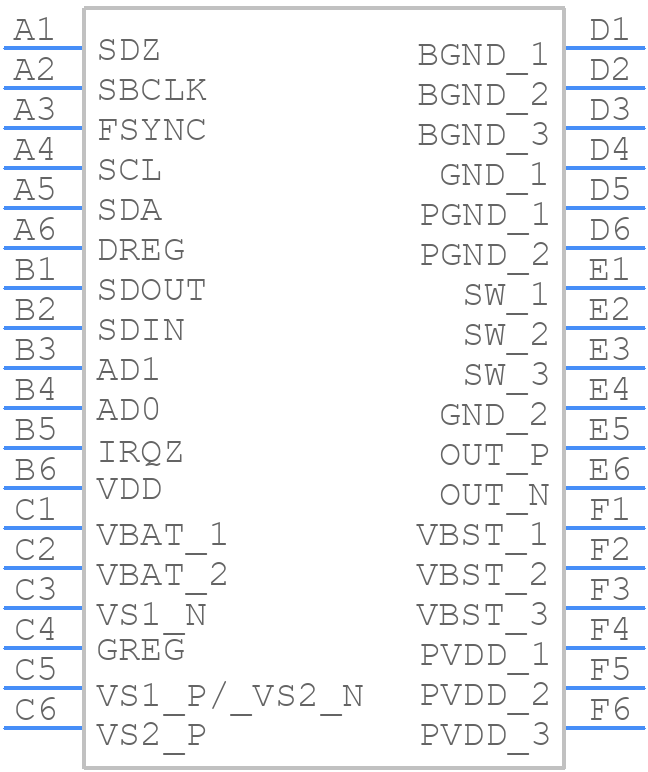

Use the download button to access the TAS2564YBGR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS25,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
