A good PCB layout for the TAS2770RJQR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended layout in the datasheet and application notes.
To optimize the TAS2770RJQR for low noise and distortion, use a low-ESR capacitor for the power supply, keep the analog and digital grounds separate, and use a shielded cable for the audio input. Additionally, ensure the device is operated within the recommended temperature range.
The TAS2770RJQR can handle up to 20W of power per channel, but this depends on the specific application and thermal design. It's essential to follow the thermal design guidelines in the datasheet to ensure reliable operation.
The TAS2770RJQR can be configured for different audio formats using the I2C interface. The device supports various audio formats, including PCM, I2S, and DSP. Refer to the datasheet and application notes for specific configuration details.
Thermal design is critical for the TAS2770RJQR. Ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines in the datasheet. The device has a thermal shutdown feature to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2770RJQR Overview

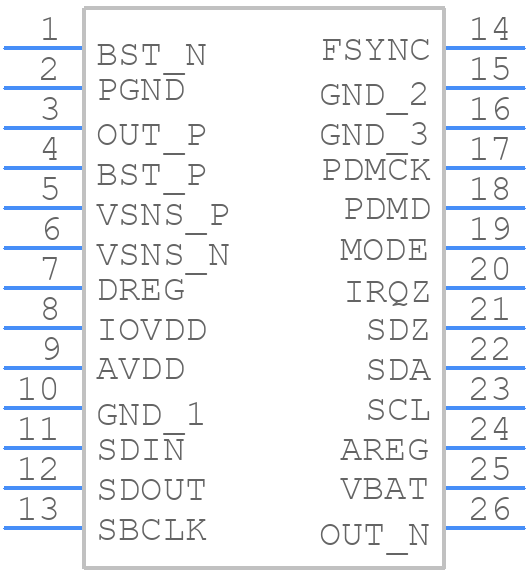

Use the download button to access the TAS2770RJQR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS27,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
