Texas Instruments provides a recommended PCB layout in the TAS2770YFFR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize noise.
To optimize the TAS2770YFFR for low noise and high fidelity audio, use a high-quality power supply, decouple the power pins with low-ESR capacitors, and use a low-noise clock source. Additionally, ensure that the analog and digital grounds are separated and connected at a single point to minimize noise coupling.
The TAS2770YFFR is a 20-W audio amplifier, but the maximum power handling capability depends on the output configuration, supply voltage, and thermal management. Refer to the datasheet for specific power handling guidelines and thermal derating curves.
Yes, the TAS2770YFFR can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the output stage configuration, supply voltage, and thermal management to avoid overheating and ensure reliable operation.
To troubleshoot common issues with the TAS2770YFFR, refer to the datasheet and application notes for guidance on debugging techniques, such as checking the power supply, output stage configuration, and clock source quality. Additionally, use oscilloscopes and spectrum analyzers to measure the output signal and identify sources of distortion or oscillation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2770YFFR Overview

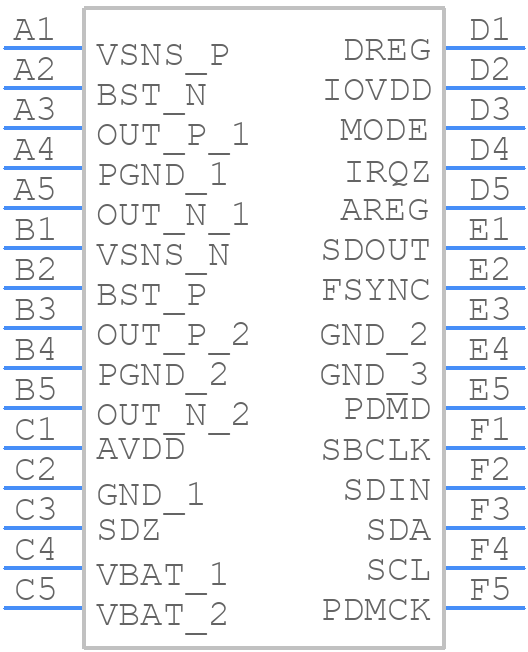

Use the download button to access the TAS2770YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS27,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
