Texas Instruments provides a recommended PCB layout in the TAS2780RYAR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TAS2780RYAR supports various audio formats, including I2S, TDM, and PWM. Configuration is done through the device's registers, which can be accessed through the I2C or SPI interface. Refer to the device's programming guide and register descriptions in the datasheet for specific configuration details.
The TAS2780RYAR is a 20-W audio amplifier, and its maximum power handling capability depends on the supply voltage, load impedance, and thermal conditions. Refer to the device's thermal design and power dissipation calculations in the datasheet to ensure safe operation within the recommended specifications.
The TAS2780RYAR has a built-in thermal protection feature that shuts down the device when the junction temperature exceeds 150°C. To implement thermal monitoring, use an external temperature sensor and a microcontroller to read the temperature data and take appropriate actions. Texas Instruments provides a thermal design guide to help with thermal management.
To minimize EMI and ensure EMC compliance, follow proper PCB layout and design guidelines, use shielding and filtering, and implement proper grounding and decoupling techniques. Texas Instruments provides EMI and EMC guidelines in the device's documentation and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS2780RYAR Overview

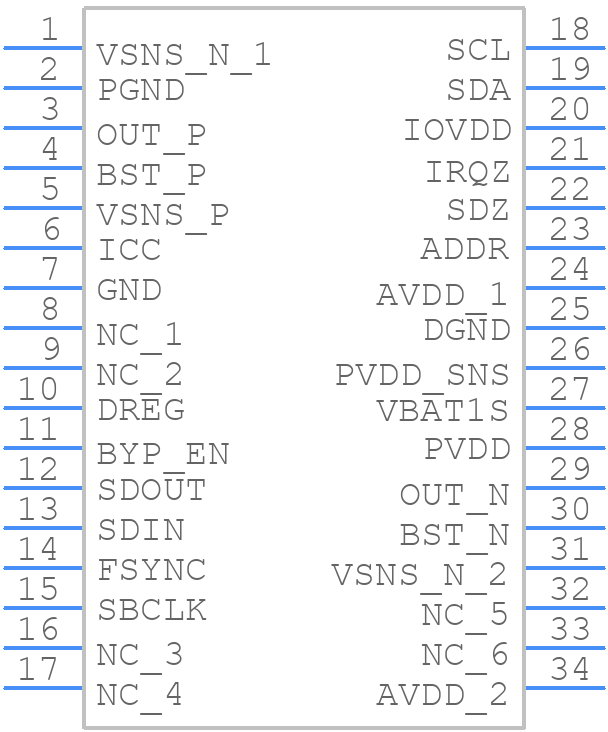

Use the download button to access the TAS2780RYAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS27,
or try a keyword search, such as Audio/Video Amplifiers
