SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5142DDV Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5142DDV evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5142DDV for low noise and high fidelity audio, ensure that the power supply is well-regulated and filtered, use a low-noise clock source, and optimize the gain settings and filter configurations. Additionally, consider using a dedicated audio ground plane and separating the analog and digital grounds to minimize noise coupling.
The maximum power dissipation of the TAS5142DDV is dependent on the operating conditions, such as supply voltage, output power, and ambient temperature. According to the datasheet, the maximum power dissipation is approximately 2.5 W. However, it's essential to perform thermal analysis and design a suitable heat sink to ensure the device operates within a safe temperature range.
Yes, the TAS5142DDV is suitable for Class-D amplifier designs. It's a high-performance, high-fidelity audio amplifier that can be used in Class-D configurations. However, it's essential to ensure that the device is properly configured and optimized for the specific application, including selecting the correct output filter components and setting the gain and feedback networks.
To troubleshoot common issues with the TAS5142DDV, start by verifying the power supply and clock source. Check for proper termination and impedance matching, and ensure that the device is properly configured and optimized for the specific application. Use oscilloscopes and spectrum analyzers to measure the output signal and identify any anomalies. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5142DDV Overview

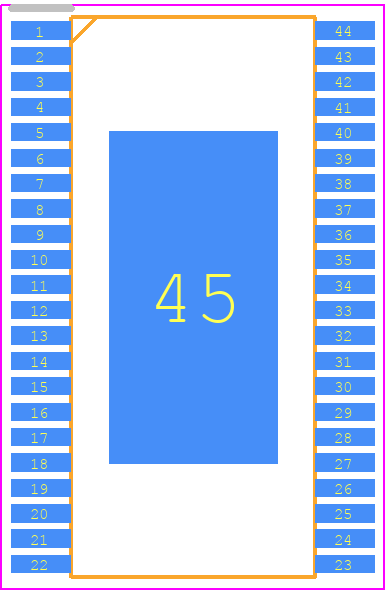

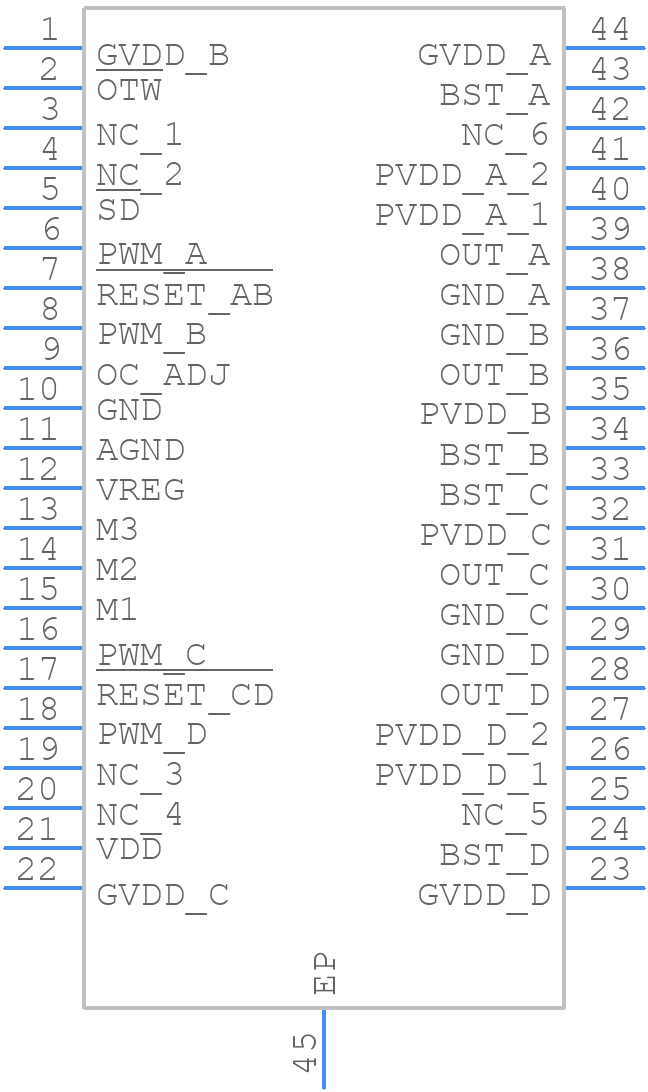

Use the download button to access the TAS5142DDV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS51,
or try a keyword search, such as Audio/Video Amplifiers
