SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5142DDVR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5142DDVR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5142DDVR for low noise and high fidelity audio, ensure proper power supply decoupling, use a low-noise voltage regulator, and implement a high-quality analog filter to remove high-frequency noise. Additionally, optimize the gain settings and use a high-quality audio codec or digital-to-analog converter (DAC).
The TAS5142DDVR is capable of delivering up to 20W of continuous power per channel into a 4Ω load, and up to 30W of peak power per channel into a 2Ω load. However, the actual power handling capability may vary depending on the specific application, thermal management, and PCB design.
To protect the TAS5142DDVR from overvoltage and undervoltage conditions, use a voltage regulator with overvoltage protection (OVP) and undervoltage protection (UVP) features. Additionally, consider adding external voltage monitoring and protection circuits, such as a voltage supervisor or a power-on reset (POR) circuit.
To ensure reliable operation and prevent overheating, use a heat sink with a thermal resistance of less than 10°C/W, and ensure good airflow around the device. Additionally, consider using thermal interface materials (TIMs) and thermal pads to improve heat transfer between the device and the heat sink.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5142DDVR Overview

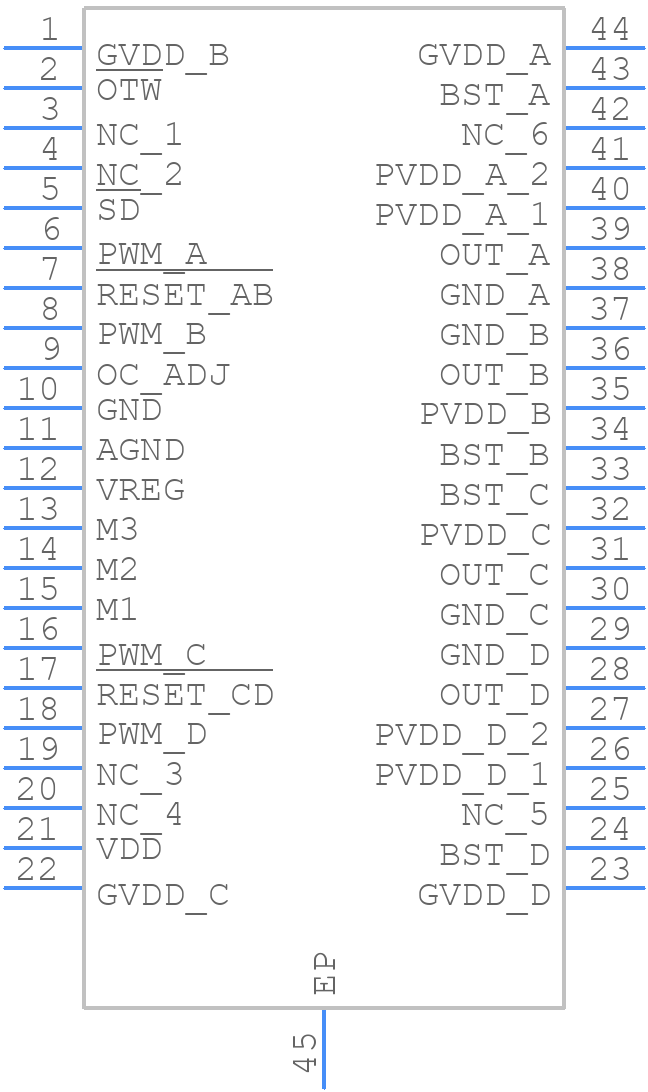

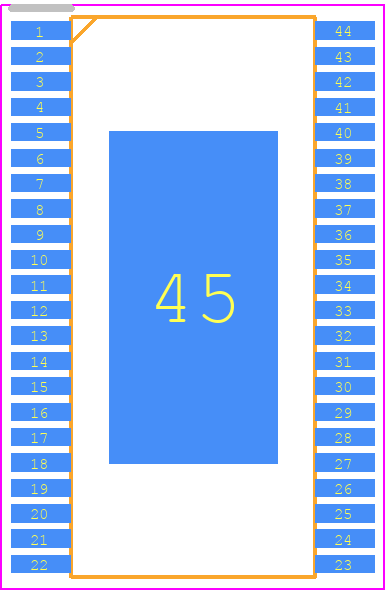

Use the download button to access the TAS5142DDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS51,
or try a keyword search, such as Audio/Video Amplifiers
