A good PCB layout for the TAS5261DKDR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded inductor and keeping the high-frequency components away from the analog circuitry can help minimize EMI.
Optimizing the compensation network for the TAS5261DKDR involves selecting the right values for the compensation components (Rc, Cc, and Lc) based on the output filter configuration and the desired closed-loop bandwidth. TI provides a compensation design tool to help with this process.
The maximum allowed input voltage for the TAS5261DKDR is 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent damage to the device.
To ensure the TAS5261DKDR operates within the recommended operating conditions, monitor the device's junction temperature, input voltage, and output current. Also, ensure the device is operated within the recommended frequency range and that the output voltage is within the specified range.
The TAS5261DKDR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat sinking and to keep the device away from heat sources. A thermal pad on the bottom of the package helps to dissipate heat.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5261DKDR Overview

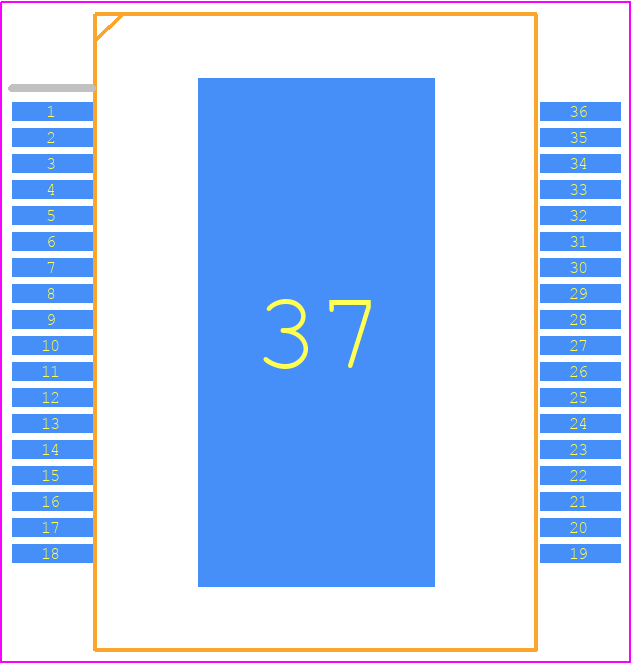

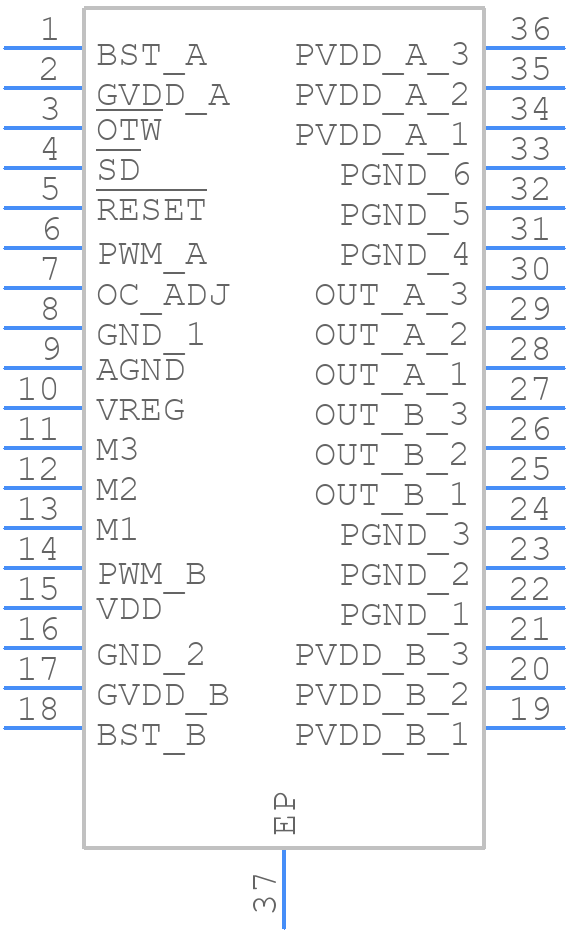

Use the download button to access the TAS5261DKDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS52,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
