Texas Instruments provides a recommended PCB layout in the TAS5261DKDRG4 datasheet (SLUS933) and in the TAS5261DKDRG4 Evaluation Module (EVM) user's guide (SLAU292). It's essential to follow these guidelines to ensure proper thermal management, noise reduction, and signal integrity.
The TAS5261DKDRG4 output power level can be configured by adjusting the RSET resistor value, which sets the current limit. The datasheet provides a formula to calculate the RSET value based on the desired output power. Additionally, the device can be configured using the I2C interface to adjust the output power level dynamically.
The TAS5261DKDRG4 has a high-power density, and thermal management is crucial. Texas Instruments recommends using a heat sink, thermal vias, and a thermal pad on the PCB to dissipate heat. The device also has a built-in thermal protection feature that shuts down the device if the junction temperature exceeds 150°C.
To ensure EMC, follow proper PCB layout and design guidelines, use shielding and filtering components, and implement proper grounding and decoupling techniques. The TAS5261DKDRG4 datasheet and EVM user's guide provide guidance on EMC considerations.
The TAS5261DKDRG4 is a high-power, high-fidelity audio amplifier with a unique combination of features, such as high output power, low distortion, and high efficiency. Compared to other similar devices, it offers a higher power-to-package-size ratio, making it suitable for compact designs. The datasheet and product page provide detailed comparisons with other Texas Instruments audio amplifiers.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5261DKDRG4 Overview

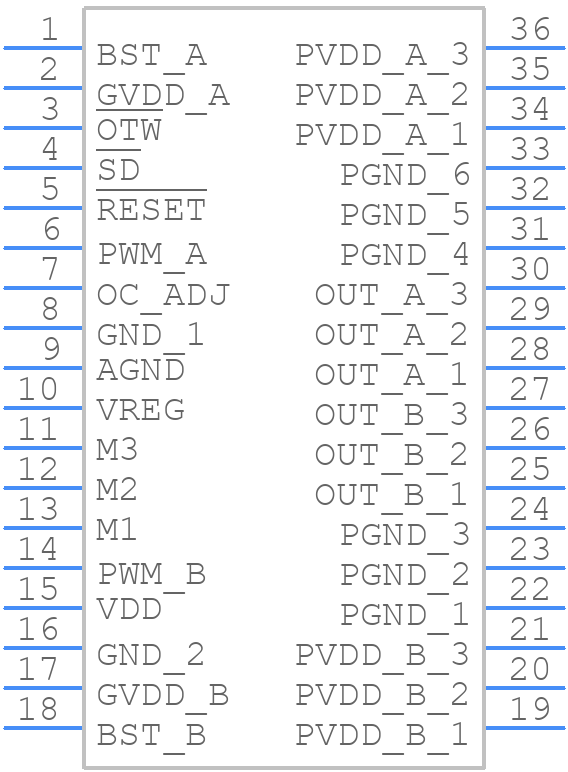

Use the download button to access the TAS5261DKDRG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS52,
or try a keyword search, such as Audio/Video Amplifiers
