SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
17 mA
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5342ADDV Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5342ADDV evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5342ADDV for low noise and distortion, ensure proper power supply decoupling, use a low-noise power supply, and minimize the length of the input traces. Additionally, use a differential input configuration, and consider using a common-mode filter to reduce electromagnetic interference (EMI).
The TAS5342ADDV is a high-power digital amplifier, and its maximum power handling capability depends on the application and thermal management. According to the datasheet, the device can handle up to 100 W of output power per channel. However, it's essential to ensure proper heat sinking and thermal management to prevent overheating and damage to the device.
The TAS5342ADDV is a flexible digital amplifier that can be configured for different audio formats using the I2C interface. The device supports various audio formats, including PCM, I2S, and SPDIF. The configuration process involves setting the correct clock frequency, data format, and channel mode using the I2C interface. Refer to the datasheet and application notes for detailed configuration guidelines.
Thermal management is critical for the TAS5342ADDV, as it's a high-power device. Ensure proper heat sinking by using a heat sink with a thermal resistance of less than 1°C/W. Also, ensure good airflow around the device, and avoid blocking the airflow with components or obstacles. Additionally, consider using thermal interface materials (TIMs) to improve heat transfer between the device and heat sink.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5342ADDV Overview

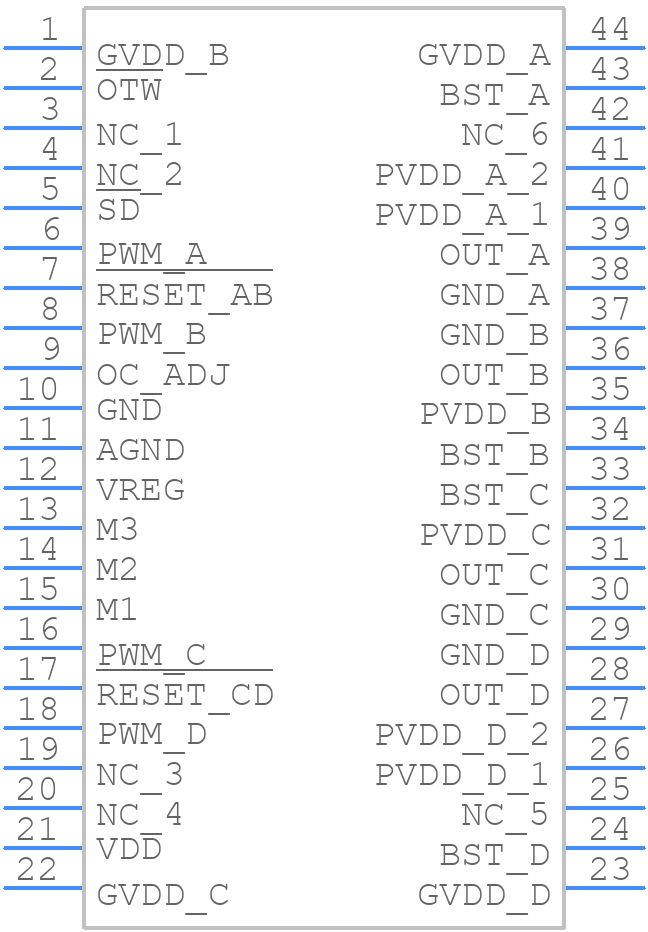

Use the download button to access the TAS5342ADDV schematic symbol, PCB footprint, and 3D model.
