SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
17 mA
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5342DDV Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5342DDV evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5342DDV for low noise and distortion, ensure proper power supply decoupling, use a low-noise power supply, and minimize the length of the input traces. Additionally, use a differential input configuration, and adjust the gain settings and filter configurations according to the application requirements.
The TAS5342DDV can handle a maximum power of 100 W per channel into a 4-ohm load. However, the actual power handling capability depends on the thermal design and heat sinking of the system. It's essential to ensure proper thermal management to prevent overheating and damage to the device.
The TAS5342DDV has built-in overvoltage protection (OVP) and overcurrent protection (OCP) features. However, it's still recommended to add external protection components, such as voltage regulators and current limiters, to ensure the device is protected from voltage and current surges.
The TAS5342DDV requires a clock signal to operate. The recommended clocking scheme is to use a single clock source for both the left and right channels, with a frequency range of 256 fs to 512 fs. It's essential to ensure the clock signal is clean and stable to prevent jitter and noise issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5342DDV Overview

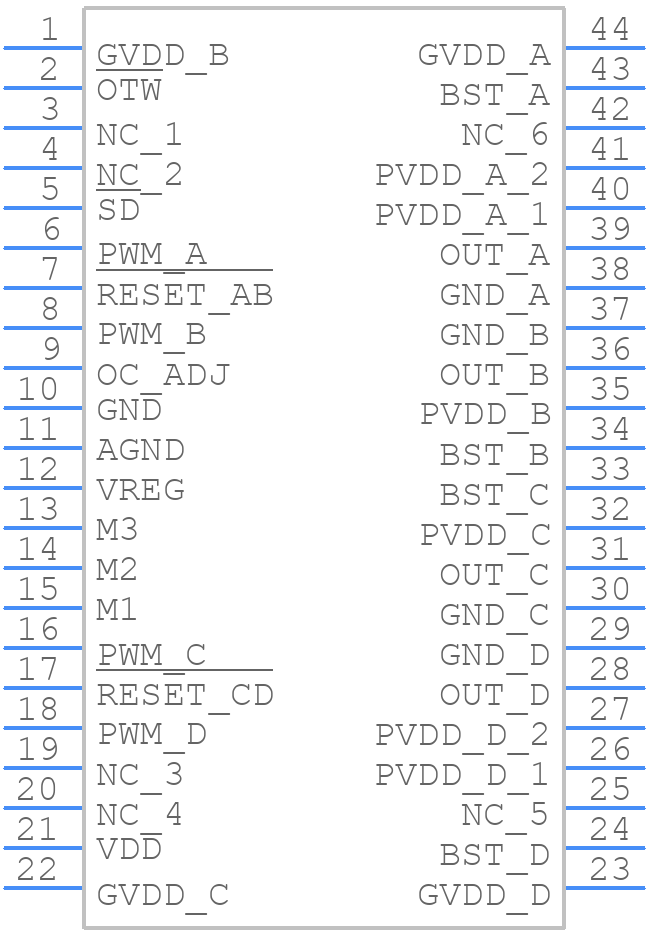

Use the download button to access the TAS5342DDV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS53,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
