SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
20 mA
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5342LDDV Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5342LDDV evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
To optimize the TAS5342LDDV for low noise and distortion, ensure proper power supply decoupling, use a low-noise power supply, and optimize the output filter design. Additionally, follow the recommended layout and routing guidelines to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI).
The maximum power dissipation of the TAS5342LDDV is dependent on the operating conditions, such as supply voltage, output power, and ambient temperature. Refer to the thermal design and power dissipation calculations in the datasheet to determine the maximum power dissipation for a specific application.
Yes, the TAS5342LDDV is suitable for Class-D amplifier designs. It has a high-power output stage and is optimized for high-efficiency, low-distortion operation. However, ensure that the design meets the recommended operating conditions and follows proper layout and routing guidelines to minimize EMI and RFI.
Implement overvoltage protection (OVP) and overcurrent protection (OCP) circuits to prevent damage to the TAS5342LDDV. The OVP circuit should be designed to detect and respond to voltage levels above the maximum recommended supply voltage, while the OCP circuit should detect and respond to excessive output current.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5342LDDV Overview

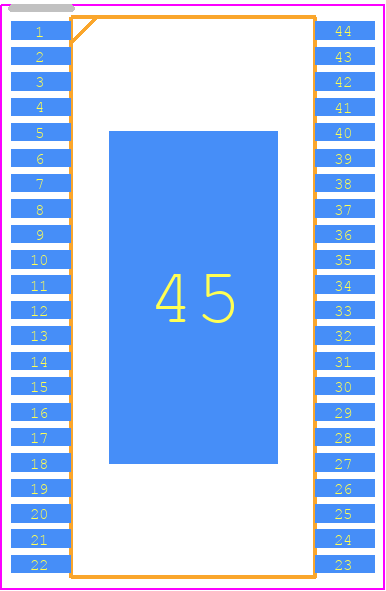

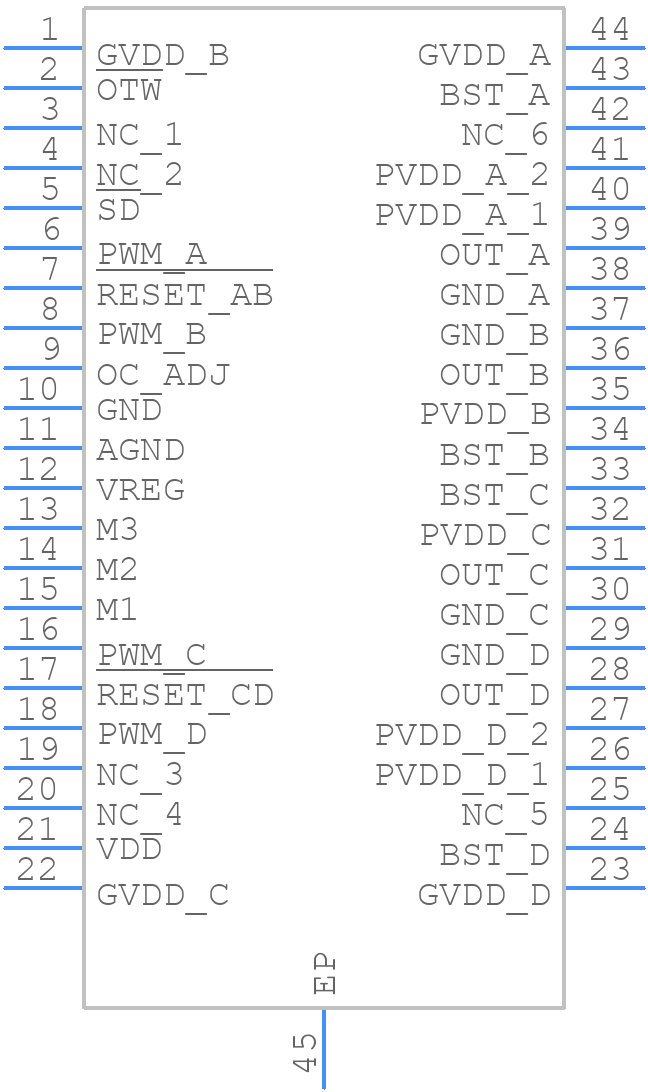

Use the download button to access the TAS5342LDDV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS53,
or try a keyword search, such as Audio/Video Amplifiers
