SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
17 mA
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5352DDV Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5352DDV evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5352DDV for low distortion and high efficiency, it's crucial to select the appropriate output filter components, ensure proper thermal management, and optimize the device's operating conditions (e.g., supply voltage, output power, and switching frequency). Additionally, using a high-quality input capacitor and ensuring a low-impedance power supply can help minimize distortion and improve efficiency.
The TAS5352DDV has a high power density, which requires careful thermal management to prevent overheating. Ensure good airflow around the device, use a heat sink or thermal pad, and follow the recommended PCB layout guidelines to minimize thermal resistance. Additionally, monitor the device's junction temperature (TJ) and adjust the operating conditions accordingly to prevent thermal shutdown.
To troubleshoot common issues with the TAS5352DDV, start by verifying the PCB layout and component values against the recommended design. Check for proper power supply decoupling, ensure the input and output filters are correctly implemented, and verify the device's operating conditions. Use oscilloscopes and spectrum analyzers to identify and diagnose issues, and consult the Texas Instruments support resources and application notes for guidance.
The TAS5352DDV is a high-frequency switching device, which can generate electromagnetic interference (EMI). To minimize EMI, follow the recommended PCB layout guidelines, use shielding and filtering components, and ensure proper grounding and decoupling. Additionally, use EMI-compliant components and follow the guidelines outlined in the Texas Instruments application notes and datasheet.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5352DDV Overview

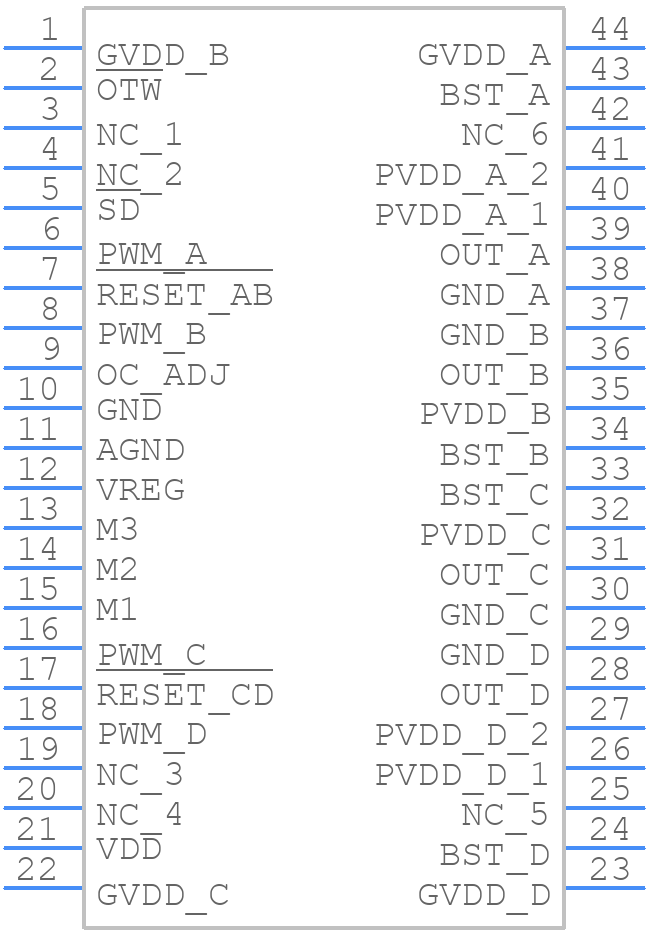

Use the download button to access the TAS5352DDV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS53,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
