TAS5352DDVR - Texas Instruments

Description: Audio Amplifiers 125W Class D Stereo Power Stage

Download TAS5352DDVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

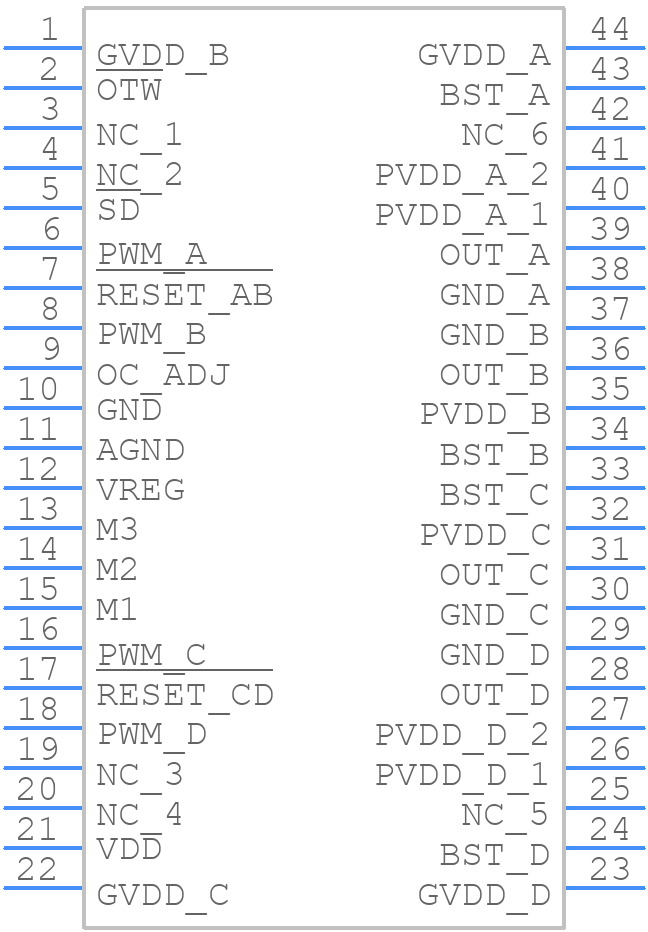

Symbol
TAS5352DDVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5352DDVR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DDV0044D
click to zoom
3D Models
TAS5352DDVR - Texas Instruments - 3D model - Small Outline Packages - DDV0044D
click to zoom

TAS5352DDVR Details

  • Manufacturer Part Number:

    TAS5352DDVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    TSSOP

  • Pin Count:

    44

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    195 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP44,.33

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    17 mA

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TAS5352DDVR Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane, separate analog and digital power planes, and a thermal pad connected to a heat sink is recommended. TI provides a reference design and layout guidelines in the datasheet and application notes.
  • TI provides a set of application notes and software tools, such as the PurePath Console, to help optimize the device's performance for specific audio applications. These tools allow for customization of filter coefficients, gain settings, and other parameters.
  • The TAS5352DDVR has a maximum junction temperature of 150°C. Ensure reliable operation by providing adequate heat sinking, using thermal interface materials, and keeping the device within the recommended operating temperature range.
  • TI provides a troubleshooting guide in the datasheet and application notes, which covers common issues and their solutions. Additionally, the PurePath Console software tool can help identify and debug issues with the device.
  • Use a combination of ceramic and electrolytic capacitors for power supply decoupling, and consider adding a pi-filter or a ferrite bead to filter out high-frequency noise. TI provides guidelines for power supply decoupling and filtering in the datasheet and application notes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5352DDVR Overview

Use the download button to access the TAS5352DDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS53, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
