Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'TAS5414 PCB Layout Guidelines' application note (SLVAUH7) for optimal performance and thermal management.
To optimize thermal performance, ensure good thermal conduction between the device and the PCB, use a thermal pad or heat sink, and follow the recommended PCB layout guidelines. Additionally, consider using thermal interface materials and optimizing the airflow around the device.
The maximum power dissipation of the TAS5414ATPHDQ1 is dependent on the operating conditions and thermal management. According to the datasheet, the maximum junction temperature is 150°C, and the thermal resistance (RθJA) is 24.4°C/W. Engineers should calculate the maximum power dissipation based on their specific application and thermal design.
To troubleshoot issues with the TAS5414ATPHDQ1, start by reviewing the datasheet and application notes, and then check the PCB layout, component values, and soldering quality. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Texas Instruments also provides technical support and resources, such as the E2E forum, to help engineers troubleshoot and resolve issues.
The recommended components for the TAS5414ATPHDQ1 are listed in the datasheet and application notes. These include components such as capacitors, resistors, and inductors, which are critical for the device's operation and performance. Engineers should ensure that they use components that meet the specified requirements and tolerances.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5414ATPHDQ1 Overview

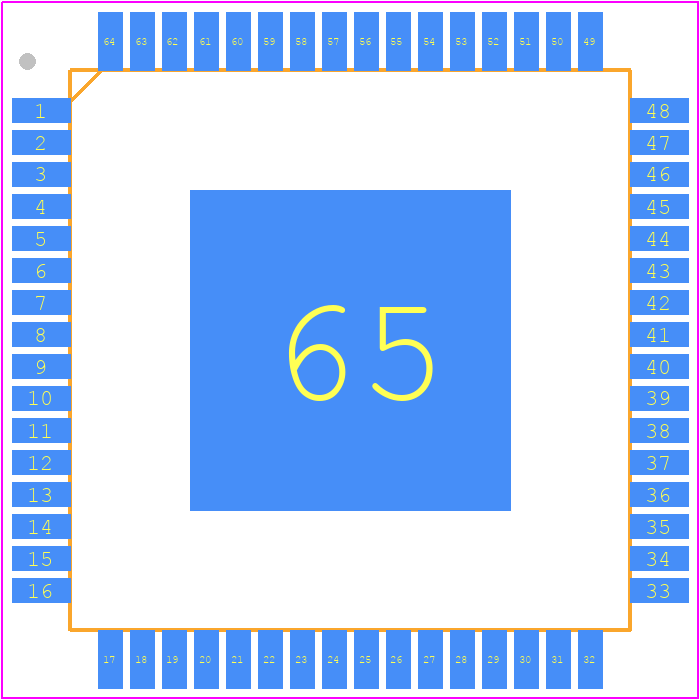

Use the download button to access the TAS5414ATPHDQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS54,
or try a keyword search, such as Audio/Video Amplifiers
